Sierra 330U Wireless 4G LTE AirCard

Sierra 330U Wireless 4G LTE AirCard, also named LTE Rocket Stick by Canada provider Rogers, so it's also called Rogers AirCard 330U. It the first member of Sierra Wireless 4G LTE AirCard family. Since Sierra 320U and Aircard 313U are designed for Europe and Asia, Sierra 330U is born to serve in American market. Like the other two brothers, Sierra 330U could also support maximum donwload speed up to 100Mbps with upload link up to 50mbps. In addition to 4G LTE network, 330U could support Dual Carrier HSPA+, earlier versions of HSPA+ and its predecessors, UMTS, GSM, and GPRS.

Based on the designed of AirCard 312U USB modem that launched in August 2010 for Dual-Carrier HSPA+ networks, Sierra 330u is thinner and more user-friendly than competitive LTE products currently available, with a rotating USB hinge that works with the widest variety of USB port placements.

Technical Specifications

* TECHNOLOGY
  - USB Device (USB Port)
  - LTE Category 3 (100 Mbps downlink, 50 Mbps uplink)
  - HSDPA Category 24 (42 Mbps downlink)
  - HSUPA Category 6 (5.76 Mbps uplink)
  - EDGE MS Class 12/GPRS MS Class 10
  - microSD/SDHC support (up to 32 GB)
  - A-GPS/GPS

* BANDS
  -LTE: Band IV (AWS) Band VII (2600 MHz)
  -UMTS/WCDMA: 850/1900/2100 MHz
  -GSM/GPRS/EDGE: 850/900/1800/1900 MHz
  -GPS: 1575 MHz

* Other Features
  -ANTENNA DIVERSITY SUPPORT
  -2x2 MIMO antenna for LTE
  -Type 3i advanced receivers on all UMTS WCDMA bands

* ENVIRONMENTAL
  -Operating temperature: 0 to 35° Celsius
  -Storage temperature: -40 to 85° Celsius
  -RoHs compliant

* STANDARDS/APPROVALS (PENDING)
  -FCC, Microsoft WHQL, IC
  -Other carrier specific approvals

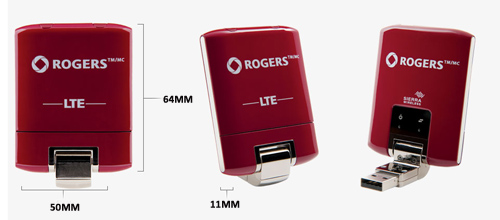

* DIMENSIONS
* 50 mm (L) x 64 mm (W) x 11 mm (H)
* Volume: 34 cc
* Weight: 55 g

* PERSONAL COMPUTER REQUIREMENTS
* USB port (2.0 recommended)
* Available disk space: 150 MB

* OS SUPPORT (DRIVERS AND SDK)
 -Windows 7, Vista, or XP Service Pack 3 (32 and 64 bit)+
 -Mac OS 10.6 (Snow Leopard) +

Speed test results unser Rogers 4G network:

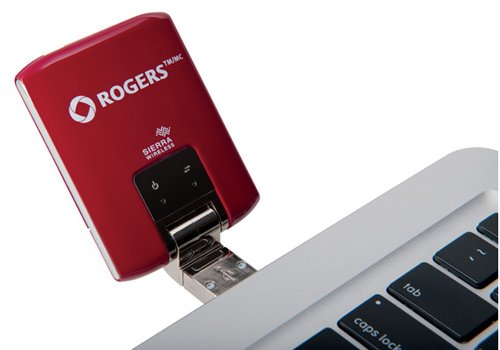

Images of Rogers 4G LTE Aircard 330U:

As one of the well-know telecom teminal supplier, Sierra Wireless also face the competition of other suppliers, such as HUAWEI, ZTE, Novatel Wireless. Some of their modems have similar functions so to make customers to have more options:

HUAWEI E392 4G LTE Modem

HUAWEI E398 4G LTE Modem

ZTE MF820 4G LTE Modem

ZTE AL600 4G LTE Modem

Novatel USB551L 4G USB Modem
