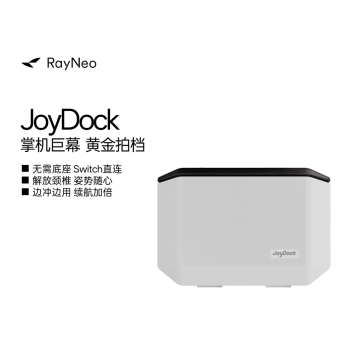

RayNeo JoyDock

RayNeo JoyDock is a portable gaming adapter and power dock designed specifically to connect the Nintendo Switch (and Switch 2 via an included back clip or firmware update) to RayNeo Air Series AR glasses. It mimics the Switch's TV Mode on the go, outputting a massive virtual theater screen directly to your glasses.

RayNeo JoyDock Technical Specifications:

• Battery Capacity: 10,000 mAh / 38 Wh (Dual 2 × 5000 mAh internal cell configuration).
• Charging Feature: Supports reverse charging (Power Delivery up to 20W) to power and extend the battery life of your Nintendo Switch while playing.
• Video Output & Resolution: Outputs 1080p Full HD in Nintendo Switch "TV Mode".
• Refresh Rate: Supports up to a smooth 120Hz refresh rate (depending on the connected RayNeo Air glasses model).
• Virtual Screen Size: Projects up to a 201-inch virtual screen (equivalent to a cinema screen at 6 meters away).
• Connectivity: Pure USB-C connection (Requires source devices to support DisplayPort Alt Mode).
• Power Management: Fully plug-and-play with auto-on when connected and auto-off when disconnected.
• Dimensions: 150 × 102.6 × 16 mm (Approx. 5.9" × 3.9" × 0.6").
• Weight: ~282 g (0.62 lbs).

Device Compatibility

• Consoles: Officially compatible with the Nintendo Switch (Standard & OLED models), and Nintendo Switch 2.
• AR Glasses: Optimized for the RayNeo Air 2, Air 3s, and Air 4 Pro series AR smart glasses.
