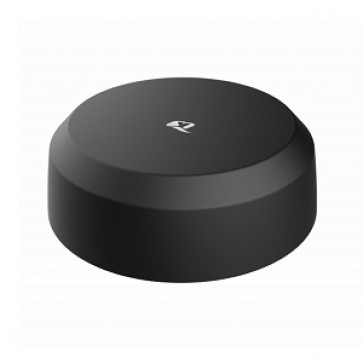

Quectel YEMN926J1A 5G Screw Mount Combo Antenna Box
* Quectel 5G & GNSS 9-in-1 Antenna
* Optimized for 5G and 4G networks
* High efficiency
* Screw mount
* SMA male connector
* IP rating: IP67 & IP69K
Availability: In stock
Quectel YEMN926J1A is a 9-in-1 5G screw mount combo antenna optimized for 5G and 4G networks. It includes a GNSS antenna and measures 167mm x 57mm. Both RoHS and REACH compliant, the combo antenna also is IP67 and IP69K rated which means it offers complete protection against ingress of dust and airborne particles as well as protection against water and liquids up to and including immersion in up to 1m of water. The IP69K rating also means the product can withstand washdown pressure of 80-100 bar in phases of 14-16 l/min at temperatures of up to 80°C.
The ultra-wide-band 5G/4G antenna box provides broad coverage from 600-6,000MHz while offering support for 3G and 2G networks as well at Cat-M and NB-IoT. The antenna is designed to work with various ground plane sizes or in free space for ease of integration with nine cable connections on the antenna as required and cable length options from 300mm to 5000mm, terminated with SMA connectors. The screw mount omnidirectional antenna is easy to install with maximized durability and is compatible with Quectel's RM520x series modules.
Quectel YEMN926J1A Specifications:
- Frequency - LMHs: 600-960MHz, 1400-6000MHz
- Frequency - MHs: 1400-6000MHz
- Frequency - GNSS: 1164-1189MHz, 1559-1606MHz
- Dimensions: Φ 167mm x 57mm
- Cable length: 300-5000mm
- RoHS and REACH compliant
* 5G LMHs & 5G MHs: Omni-directional
* GNSS: Directional
* 5G LMHs & 5G MHs: Linear
* GNSS: RHCP
* Impedance: 50Ω
* Casing Material & Color: PC & Black
* Cable Type & Length:
- 5G LMHs & 5G MHs:ALS302 Black & 300mm
- GNSS: RG174 Black & 300 mm
* Weight: 585g
* Connector type: SMA Male
* Mounting type: Screw(M27 Nut)
* Operation Temperature: -40~80℃
