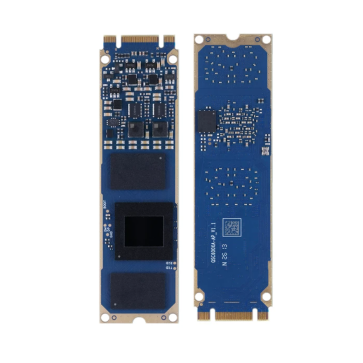

Quectel QSC600XA-AP 24TOPS INT8 M.2 Smart Computing Card

Quectel QSC600XA-AP is a high-performance Edge-AI Smart Computing Platform designed for deep learning, computer vision, and high-throughput data processing.

Quectel QSC600XA-AP M.2 Smart Computing Card Specifications:

Core Processing & AI Engine
---------------------------------------------
* Artificial Intelligence Accelerator: High-performance Neural Processing Unit (NPU) delivering 24 TOPS @ INT8 with support for mixed-precision network deployment.

* Central Processing Unit (CPU): Octa-core ARM Cortex-A55 architecture scaling up to a clock frequency of 1.5 GHz.

* Multimedia Processor: High-tier video processing pipeline capable of 8K @ 30 fps video encoding and decoding.

* Supported Software Stack: Purpose-built to run native Linux (Kernel 6.1) / Debian distribution frameworks.

* Platform: AX8850

* CPU: Octa-core ARM Cortex-A55 CPU@1.5Ghz

Memory & High-Speed Interface Specs
---------------------------------------------
* System Volatile Memory: Supports up to 32 GB of high-speed LDR4X RAM configurations.

* Mass Storage Extensions: Exposes internal buses supporting hardware expansion for up to 4 × SATA 3.0 storage arrays.

* Network Connectivity: Dual integrated physical Ethernet interfaces, with each path independently configurable to RGMII or RMII topologies.

* PCI Express (PCIe): High-speed PCIe Gen 2 × 4 PHY data lane configuration offering a maximum throughput capacity of 5 Gbps per lane.

* Peripherals Layout: Includes physical interface controllers for native USB 3.0, USB 2.0, and SD 3.0 bus configurations.

Common Applications
---------------------------------------------
The QSC600XA series cards are most frequently deployed as embedded accelerators inside M.2 computing form factors for:

* Multi-channel industrial NVR (Network Video Recorders)

* Edge computing machine vision gateways

* Real-time localized AI analytics and sorting automation

* Dimensions: 22.3 mm x 80.3 mm x 3.1mm
