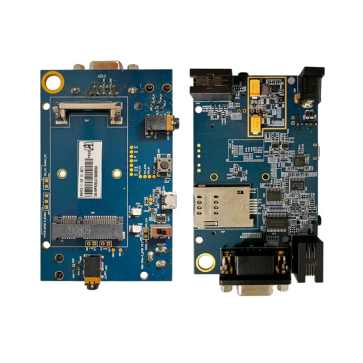

Quectel Mini PCIe EVB Kit

Quectel supplies Mini PCIe-EVB kit for designers to develop applications based on Quectel Mini PCIe module. This EVB can test all functionalities of Quectel Mini PCIe module.

Applicable Modules

* UC20 Mini PCIe
* UC15 Mini PCIe
* EC20 Mini PCIe

Key Features

* Power Supply: DC supply 4.5V~5.5V typically 5V, VBAT: 3.3V at J202
* (U)SIM Interface
- USIM/SIM card (6 pins) connector with push loading
- USIM/SIM card: 3V and 1.8V
* Audio Interface: Used for earphone and handset
* UART Interface:
- COM-serial interface for data communication (default 115200bps)
- Max. baud rate: 460800bps
* USB Interface: USB 2.0
* Signal Indication: 2 LEDs are available for signal indication
* Physical Characteristics: Size: 94mm × 58mm

Quectel Mini PCIe EVB Kit Includes

* USB to UART converter cable X 1
* USB cable X 1
* RF cable X 3
* Main Antenna X 2
* GNSS Antenna (passive) X 1
* Earphone X 1
* USB 2.0 to RS232 driver and USB driver disk X 1
* Bolts and nuts for fixing EVB X 1
