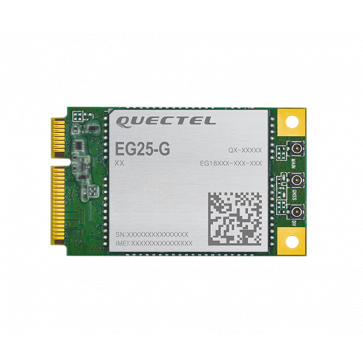

Quectel EG25-G Mini PCIe LTE Cat4 Module

Quectel EG25-G Mini PCIe is an LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink.

Quectel EG25-G Mini PCIe is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

Quectel EG25-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

Key Benefits

* LTE category 4 module optimized for broadband IoT applications

* Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

* Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices

* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Quectel EG25-G Mini PCIe Module Specifications:

* Quectel EG25-G Mini PCIe
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
- LTE-TDD: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: B2/B3/B5/B8

* Data rates:
- LTE-FDD: Max 150Mbps (DL)/Max 50Mbps (UL)
- LTE-TDD: Max 130Mbps (DL)/Max 30Mbps (UL)
- UMTS:
DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
- GSM:
EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

* Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB

* Echo Arithmetic: Echo Cancellation/Noise Suppression

* Audio: Digital Audio and VoLTE (Voice over LTE)(Optional)

* Interfaces
- USB x 1: USB 2.0 with High Speed up to 480Mbps
- PCM x 1: Digital Audio through PCM (Optional)
- I2C x 1
- (U)SIM x 1: 1.8V/3.0V (U)SIM Interface
- UART × 1: Main UART
- LED_WWAN# for Network Status Indication
- W_DISABLE# for Disabling RF Function
- PERST# for Module Resetting
- Main, Rx-diversity and GNSS Antenna Connectors

* Enhanced Features
- eCall*
- DTMF
- Audio Playback/Audio Recording
- (U)SIM Card Detection
- QuecFile*
- (U)SIM Card Connector (Optional)①
- QuecLocator®
- Downlink MIMO (Supports Rx-diversity Antenna)
- DFOTA: Delta Firmware Upgrade Over-The-Air
- GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(Optional)

* Output Power:
- Class 3 (23dBm±2dB) for LTE-FDD bands
- Class 3 (23dBm±2dB) for LTE-TDD bands
- Class 3 (24dBm+1/-3dB) for WCDMA bands
- Class E2 (27dBm±3dB) for GSM850 8-PSK
- Class E2 (27dBm±3dB) for EGSM900 8-PSK
- Class E2 (26dBm±3dB) for DCS1800 8-PSK
- Class E2 (26dBm±3dB) for PCS1900 8-PSK
- Class 4 (33dBm±2dB) for GSM850
- Class 4 (33dBm±2dB) for EGSM900
- Class 1 (30dBm±2dB) for DCS1800
- Class 1 (30dBm±2dB) for PCS1900

* Consumption:
- 3.6mA @Sleep, Typ.
- 35mA @Idle

* Sensitivity:
- LTE B1: -99.5 (10MHz)
- LTE B2: -99.9dBm (10MHz)
- LTE B3: -99.7dBm (10MHz)
- LTE B4: -99.7dBm (10MHz)
- LTE B5: -99.9dBm (10MHz)
- LTE B7: -99.2dBm (10MHz)
- LTE B8: -99.8dBm (10MHz)
- LTE B12: -99.8dBm (10MHz)
- LTE B13: -99.5dBm (10MHz)
- LTE B18: -100dBm (10MHz)
- LTE B19: -99.9dBm (10MHz)
- LTE B20: -99.8dBm (10MHz)
- LTE B25: -100dBm (10MHz)
- LTE B26: -99.5dBm (10MHz)
- LTE B28: -99.6dBm (10MHz)
- LTE B38: -99dBm (10MHz)
- LTE B39: -99.5dBm (10MHz)
- LTE B40: -99.2dBm (10MHz)
- LTE B41: -99dBm (10MHz)
- WCDMA B1: -109.2dBm
- WCDMA B2: -110dBm
- WCDMA B4: -109.7dBm
- WCDMA B5: -110.4dBm
- WCDMA B6: -110.5dBm
- WCDMA B8: -110.5dBm
- WCDMA B19: -110.1dBm
- GSM850: -108dBm
- EGSM900: -108dBm
- DCS: -107.5dBm
- PCS: -107.5dBm

* Software Features
USB Serial Driver:
- Windows 7/8/8.1/10,
- Linux 2.6~5.4,
- Android 4.x/5.x/6.x/7.x/9.x
GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
NDIS Driver: Windows 7/8/8.1/10
MBIM Driver: Windows 8/8.1/10, Linux 3.18~5.4
GobiNet Driver: Linux 2.6~5.4
QMI_WWAN Driver: Linux 2.6~5.4
Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/SMTP/MQTT/CMUX/HTTPS/FTPS/SMTPS/SSL/MMS*/FILE*

* General Features
- Operation Temperature Range: -35°C ~ +75°C
- Extended Temperature Range: -40°C ~ +85°C
- Dimensions: 51.0mm x 30.0mm x 4.9mm
- Weight: Approx. 9.8g
- MINI PCIe Package
- Supply Voltage: 3.0V~3.6V, 3.3V Typ.
- 3GPP E-UTRA Release 11
- Bandwidth: 1.4/3/5/10/15/20MHz
- 3GPP TS27.007, 27.005 and Enhanced AT Commands

* Approvals
Carrier:
Deutsche Telekom (Europe)
Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile*
(North America)
Telus/Rogers* (Canada)
Regulatory:
GCF (Global)
CE (Europe)
FCC/PTCRB (North America)
IC (Canada)
Anatel (Brazil)
IFETEL (Mexico)
SRRC/CCC/NAL (China)
KC (South Korea)
NCC (Taiwan, China)
JATE/TELEC (Japan)
RCM (Australia & New Zealand)
FAC* (Russia)
NBTC (Thailand)
IMDA (Singapore)
ICASA (South Africa)

* Others:
- RoHS
- WHQL
