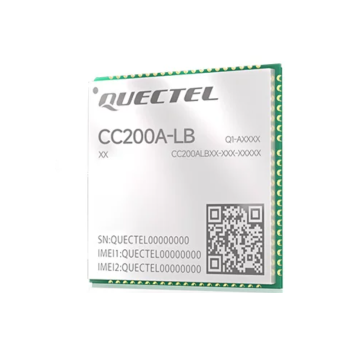

Quectel CC200A-LB Industrial-grade Satellite Communication IoT Module

Quectel CC200A-LB is an industrial-grade satellite communication IoT module designed to provide global, two-way connectivity in ultra-remote areas lacking cellular network coverage. It operates via the Inmarsat GEO constellation utilizing the IsatData Pro (IDP) satellite service.

Quectel CC200A-LB Satellite Module Specifications

Satellite & Wireless Connectivity
---------------------------------------------------
* Satellite Network: Inmarsat GEO / IsatData Pro (IDP) service network
* Operating Band: L-Band
* Transmit (Tx) Frequency: 1626.5-1660.5 MHz, 1668-1675 MHz
* Receive (Rx) Frequency: 1518-1559 MHz
* Uplink (Tx) Data Size: Up to 6.4 Kbytes per message
* Downlink (Rx) Data Size: Up to 10 Kbytes per message
* Latency: Approximately 20 seconds for a 100-byte message

GNSS & Positioning
---------------------------------------------------
* Supported Constellations: GPS L1, GLONASS L1, Galileo E1, BDS B1
* Autonomous Position Accuracy: 1.5 meters
* Hot Start TTFF: 1 second
* Warm Start TTFF: 25 seconds
* Cold Start TTFF: 28 seconds

Hardware & Interfaces
---------------------------------------------------
* Package Form Factor: LCC + LGA design
* Dimensions: 37.0 mm x 38.0 mm x 3.35 mm
* Control Interface: AT Command Set
* Peripheral Interfaces: UART, I2C, ADC, GPIO
* Power Supply: DC 5.5V to 6.5V (Typical: 6.0V)
* Operating Temperature: -40 °C to +85 °C
