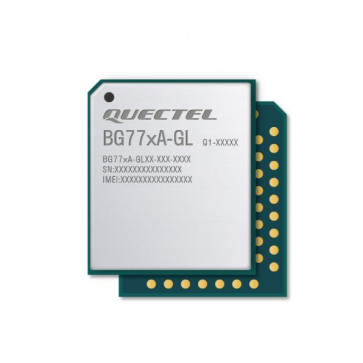

Quectel BG772A-GL LTE Cat M1/NB1/NB2 module
* Quectel LTE Cat M1/NB1/NB2 LPWA Module
* 3GPP: 3GPP E-UTRA Release 13/14
* VoLTE*: Voice over LTE (For Cat M1 only)
* Data Rate (Max.)
- Cat M1 588 kbps (DL)/ 1119 kbps (UL)
- Cat NB2* 127 kbps (DL)/ 158 kbps (UL)
* Region/Operator: Global
Availability: In stock
Quectel BG772A-GL is a new LPWA module with an SMT form factor of 14.9mm × 12.9mm × 1.9mm and integrated GNSS engine, which supports LTE Cat M1 and LTE Cat NB1/NB2 bands. The module is fully compliant with the 3GPP Rel-14 specification and provides global carrier band combinations. It features the MIPS 5150 processor and ultra-low power consumption by leveraging the integrated RAM and flash to achieve extremely low current consumption in various standby/hibernation modes, including 3GPP PSM and e-I-DRX. In addition, the BG772A-GL contains a GNSS and cellular-based location engine that supports GPS and GLONASS.
Quectel BG772A-GL boasts a comprehensive hardware based security feature - Integrated Security Elements (ISE). The ultra-compact form factor and high integration level of the module enables integrators and developers to easily design their applications and take advantage of low-power consumption and mechanical intensity. The Quectel's advanced LGA package allows for fully automated manufacturing required for high-volume applications.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities extend the applicability of the module to a wide range of IoT applications, such as wireless POS, smart metering, tracking, wearable devices, and many more.
Highlight features:
* Integrated RAM and flash
* Embedded with abundant Internet service protocols
* Support for VoLTE* (Cat M1 only), QuecLocator®, and DFOTA
* Rich set of external, multi-band interfaces that ensure convenient applications
* Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design in time and development efforts
* Robust mounting and interfaces
