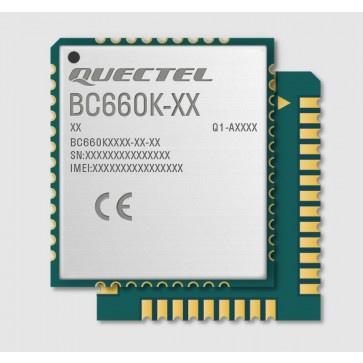

Quectel BC660K-GL LTE Cat NB2 LPWA Module

Quectel BC660K-GL is a high-performance LTE Cat NB2 module which supports multiple frequency bands of B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B28/B66/B70/B85 with extremely low power consumption. The module’s ultra-compact profile makes it a perfect choice for size-sensitive applications. Designed to be compatible with Quectel's GSM/GPRS M66 module and NB-IoT BC66 module in form and size, it provides a flexible and scalable platform for migrating from GSM/GPRS to NB-IoT networks.

Quectel BC660K-GL uses surface-mount technology, which makes it an ideal solution for durable and rugged designs. The module’s small LCC package allows it to be easily embedded into space-constrained applications and to enjoy reliable connection with the applications. This kind of package suits large-scale manufacturing which has strict requirements on cost and efficiency.

Due to its ultra-compact profile, super-low power consumption and extended temperature range, the BC660K-GL is an excellent choice for a wide range of IoT applications, such as smart metering, bike sharing, smart parking, smart city, security and asset tracking, home appliances, agricultural and environmental monitoring. It can also provide a complete range of SMS and data transmission services to meet various user demands.

Quectel BC660K-GL Module Specifications:

* Form factor: LCC

* Dimensions: 15.8 × 17.7 × 2.0mm

* 4G LTE Category: Cat NB2

* Frequency Bands:
- LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B28/B66/B70/B85

* Weight: 1.0±0.2 g

* Operation Temperature: -35°C ~ +75°C

* Extended Temperature: -40°C ~ +85°C

* Data rates:
- LTE Cat-NB1: Single-tone: 25.5Kbps (DL) /16.7Kbps (UL), Multi-tone: 127Kbps (DL) /158.5Kbps (UL)
- LTE Cat-NB2: Max. 127Kbps (DL)/158.5Kbps (UL)

* SMS:

* Network Protocol: UDP/TCP/PING/LwM2M*/SNTP/MQTT*/MQTTS*/SSL*/TLS*

* Interfaces:
- (U)SIM: 1.8V/3.0V
- UART: × 2 (for QuecOpen® version, × 3)
- USB:
- I2C x 1* (QuecOpen Version only)
- ADC × 1 (for QuecOpen® version, × 2)
- GPIO × 4 (for QuecOpen® version, × 13)
- RESET x 1
- SPI*× 1 (for QuecOpen®version only)
- PSM_EINT PSM_ENIT × 1 (for QuecOpen®version, × 2)
- NETLIGHT x 1
- Antenna: Primary

* Special Functions:
- QuecOpen®
- DFOTA
- RAI
- eSIM
- Firmware update: via UART/USB

* Voltage: 2.2V~4.3V, 3.3V Typ.

* Power Consumption: 800μA@PSM

* Certifications: CE/RCM/FCC/IC/PTCRB*/GCF*/AT&T*/Verison

* Recommended Applications Gas Detector, Soil PH Tester, Optical Sensor, Machinery Alarm System, Irrigation Controller, Elevator, Asset Tracking Electronics, Person/ Pet Tracking, Water/ Gas Metering, Smart Parking System, Fire Hydrant, Smoke Alarm, Smart Bin, Street Lighting
