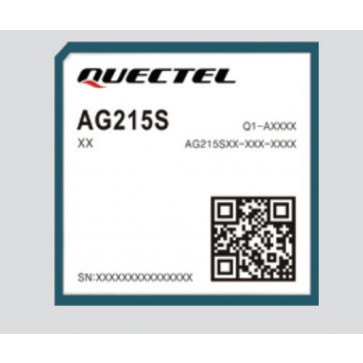

Quectel AG215s Application Processor Module

Quectel AG215s Module Specifications：

* Form factor: LGA

* Dimensions: 33.0 × 33.5 × 3.3mm

* Weight: 7.07g

* Operating Temperature: -40 °C ~ +85 °C

* Application Processor Module: Automotive Grade Application Processor for C-V2X and Telematics

* Interfaces:
- SDIO
- PCIe: PCIe Gen2
- USB: USB 3.0*1 and USB2.0*1
- RGMII: RGMII up to 1 Gbps
- UART
- SPI
- I2C
- 1PPS(Input)
- ADC

* Enhanced Features
- Powerful Cores: 64-bit ARM Cortex-A53 Microprocessor Cores,1.4 GHz Dual-Core Processor (Quad-Core Processor Optional), Optimized communication performance with Quectel AG520R/AG550Q/AG553Q, Dedicated AP for ITS stack and applications

- Embedded ECDSA Hardware Engine: Support NIST p-384, NIST p-256, Brainpool p-384, Brainpool p-256, SM2 256 bit Curves

- Scalable ECDSA Capability: Up to 2500TPS through embedded engine and CPU (based on NIST p-256 and SM2)

- Hardware Crypto Engine Embedded(Optional): Secret key generation and storage, digital signature and verifi cation, Up to 2000TPS ECSDA capability (based on NIST p-256 and SM2)
