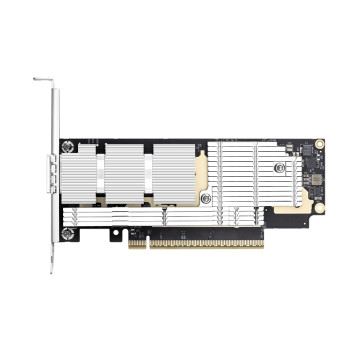

NVIDIA Mellanox MCX75310AAS-NEAT ConnectX-7 VPI Network Adapter Card

NVIDIA MCX75310AAS-NEAT is a ConnectX-7 VPI (Virtual Protocol Interconnect) network adapter card configured for ultra-high-speed data center cluster infrastructure. It delivers up to 400 Gb/s of throughput over a single physical network port using either the InfiniBand or Ethernet protocol. The specific "AAS-NEAT" suffix highlights that the card has Secure Boot Enabled but Crypto features (like hardware line-rate encryption) Disabled, and it ships with a tall bracket.

NVIDIA MCX75310AAS-NEAT Network Adapter Card Specifications:

Physical & Form Factor
----------------------------------------------------------------------
- Card Profile: PCIe Standup Card (Half-Height, Half-Length / HHHL)
- Dimensions: 2.71 in. x 6.6 in. (68.90 mm x 167.65 mm)
- Bracket Provided: Tall Bracket (Standard Full-Height installed)

Host & Network Interfaces
----------------------------------------------------------------------
- Host Bus Interface: PCI Express (PCIe) Gen 5.0 x16 lanes
- SERDES Speed: 32 GT/s per lane (PCIe 4.0/3.0 backward compatible)
- Network Port Count: 1 Single Port
- Physical Connector Interface: OSFP

Protocol Support & Data Rates
----------------------------------------------------------------------
- InfiniBand Mode: NDR / NDR200 / HDR / HDR100 / EDR / FDR / SDR
- Ethernet Mode: 400 / 200 / 100 / 50 / 40 / 10 / 1 Gb/s
- Electrical Protocols: 400GBASE-CR8, 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-4 C2M, 100GBASE-CR4, and legacy
- Auto-Negotiation: IBTA v1.5a compliant (with NVIDIA BER extensions)

Hardware Capabilities & Security Profile
----------------------------------------------------------------------
- Secure Boot: Enabled (Hardware root of trust for firmware)
- Crypto Engines: Disabled (No IPsec/TLS hardware acceleration)
- Network Offloads: RoCE, GPUDirect RDMA, ASAP2, and Advanced Congestion Control

Power & Environmental Bounds
----------------------------------------------------------------------
- Voltage Supply: 12V main bus and 3.3VAUX (100mA max auxiliary)
- Typical Power Consumption: 24.9 Watts (with passive copper DAC)
- Operating Ambient Temp: 0 deg C to 55 deg C
- Storage Temperature: -40 deg C to 70 deg C
- OS Support: RHEL/Ubuntu Linux, Windows Server, VMware ESXi
