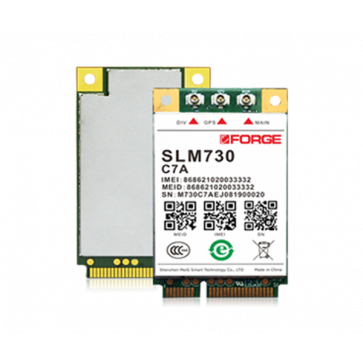

MeiG SLM730 LTE PCIe Module

* Brand:MeiG Smart


* LTE Cat-4 or LTE Cat-1 Module

* Four sub-models: SLM730C7A, SLM730C7B, SLM730C7C, SLM730C5B


* Form factor: 52-pin Mini-PCIe

* Platform:Qualcomm


* LTE Cat4 Speed: Max.150Mbps(DL),Max.50Mbps(UL)


* LTE Cat1 Speed: Max.10Mbps(DL),Max.5Mbps(UL)

Sign up for price alert

Availability: In stock

Regular Price: $159.00

Special Price $99.00

  • Buy 5 for $95.00 each and save 5%
  • Buy 10 for $90.00 each and save 10%

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

MeiG SLM730 Module Technical Specifications:

* Brand:MeiG Smart

* Product No:SLM730

* Form factor: 52-pin Mini-PCIe

* Platform:Qualcomm

* Supported Frequency Band(MHz):

SLM730C7A:
- LTE-FDD:B1/B3/B5
- LTE-TDD:B38/B39/B40/B41
- TD-SCDMA:B34/B39
- WCDMA:B1 GSM:900/1800
- EVDO&CDMA :BC0

SLM730C7B:
- LTE-FDD: B1/B3/B5
- LTE-TDD: B38/B39/B40/B41
- TD-SCDMA: B34/B39
- WCDMA:B1 EVDO&CDMA: BC0
- GSM: 900/1800

SLM730C5B:
- LTE-FDD: B1/B3
- LTE-TDD: B38/B39/B40/B41
- TD-SCDMA: B34/B39 WCDMA:B1
- GSM: 900/1800

SLM730C5B:
- LTE-FDD:B1/B3/B5
- LTE-TDD:B38/B39/B40/B41
- TD-SCDMA:B34/B39
- WCDMA:B1 GSM:900/1800
- EVDO&CDMA :BC0


* LTE Speed(Mbps):
- LTE CAT 1:10(DL)/5(UL)
- LTE-FDD:150(DL)/50(UL)
- LTE-TDD:130(DL)/35(UL)

* DC-HSPA+Speed(Mbps):42(DL)/5.76(UL)

* WCDMA Speed(Kbps):384(DL)/384(UL)

* TD-SCDMA Speed(Mbps):4.2(DL)/2.2(UL)

* EVDO RevB Speed(Mbps):14.7(DL)/5.4(UL)

* EVDO RevA Speed(Mbps):3.1(DL)/1.8(UL)

* CDMA 1x Speed(Kbps):153.6(DL)/153.6(UL)

* EDGE Speed(Kbps):236.8(DL)/236.8(UL)

* GPRS Speed(Kbps):85.6(DL)/85.6(UL)

* Interfaces:
- SIM (1.8V/3V)
- UART
- USB 2.0
- HS
- Voice Simulation (optional)
- PCM Voice
- GPIO
- Antenna(ANT_PRI/ANT_DIV)


* Working Temperature:-40°C~+85°C

* Special Functions:
- DTMF TTS TCP/IP FTP HTTP
- RIL Driver(Android 4.2/4.4/5.0/5.1/6.0/7.1)
- NDIS(Windows XP/Vista/7/8/10)
- ECM (in development )
- Gobinet(Linux 2.6 or later)
- GNSS(optional)
- Firmware Update:USB/*FOTA

* Supply Voltage: 3.3~4.2V,typ.3.8V

* Dormancy Power Consumption:<2mA

* Shutdown Leakage Current:100μA

* Application Fields:Mobile Broadband, Industrial Routing,Automotive and Transportation, Green Energy, Wireless Payment, Smart Metering, Personal Tracking, Car-mounted DVR, Smart Industry, Medical Surveillance, Charging Pile, Video Surveillance etc.

* Dimension (mm): 51.0 x 30.0 x 4.8

* Weight:<5g
