Longsung A9500 eMTC NB-IoT Wireless Module

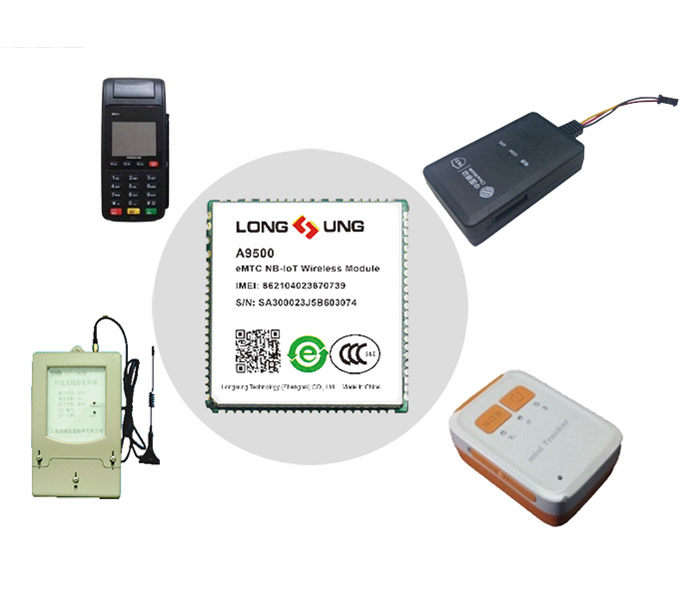

Longsung A9500 is a LTE CatM/CatNB1 cellular module based on QUALCOMM MDM9206,which is designed for the global IOT and M2M market. With 3GPP Rel.13, Longsung A9500 can provide 1Mbps data access in CatM(eMTC) and 200Kbps data access in CatNB1(NB-IOT), and it can be designed in many kinds of IOT and M2M application , especially in AMI, POS, Vehicle and Tracker:

Longsung A9500 Key Features:

· Small Size with LCC package
· High Reliability
· Wide Work Temperature
· Multi-constellation GNSS
· Support FOTA, DTMF
· Support OpenCPU

To match different area and country complicated LTE band requirement, A9500 has 3variants: A9500 for China; A9500E for Europe; A9500A for American.

Longsung A9500 NB-IoT Module Technical Specifications:

* LTE-TDD Cat M1(eMTC) Single-band B39

* LTE-FDD Cat M1(eMTC) Tri-band B3/B5/B8

* NB-IoT Tri-band B3/B5/B8

* EGPRS Dual-band B5/B8

* Control via AT commands (GSM07.05,GSM07.07,V.25TER,GPRS, and Longsung enhanced AT commands)

* Supply voltage range 3.3V-4.2V

* Low Power consumption
- eDRX mode: <1.2mA
- PSM mode: <7 μA

* Dimensions: 24.0mm×26.0mm×2.3mm

* Soldering mounted type

* Temperature range
- Normal Operation: -40°C to +85°C
- Restricted Operation: -45°C to +90°C

* Data transmission:
- Cat M1 R13: Up to 1Mbps DL&UL
- Cat NB1 R13: Up to 200Kbps DL&UL

* Additional features
- Embedded TCP/IP stack
- TTS
- EFS
- FOTA
- OpenCPU

* Interfaces
- LCC package
- Power supply
- SIM 3V, 1.8V
- RTC backup input
- UARTs
- POWER_STATUS
- NET_LIGHT
- IIC
- Hardware reset input
- Power on key input
- VDD_2.8V output
- ADCs (1.8V tolerance)
- SPI
- USB
- GPIOs
- GPS
- Antenna interface


* Approvals: RoHS/CCC/CTA
