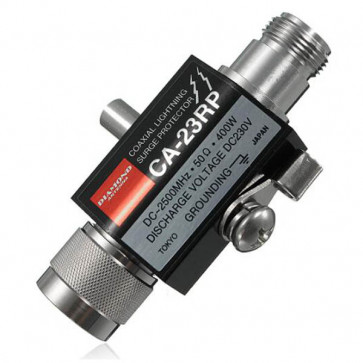

Lighting Arrestor CA-23RP Surge Protector
* Cheap Lighting Arrestor
* Frequency range: DC to 2500MHz
* Connector type: N male - N Female
* Insulating Resistance DC100v: Over 10,000M ohms
* Max Power Rating: 400w PEP
Availability: In stock
$29.00
- Buy 10 for $25.00 each and save 14%
- Buy 15 for $22.00 each and save 25%
- Buy 20 for $20.00 each and save 32%
Details
Details
The surge protector CA-23RP is a arrestor of coaxial construction. This device designed to absorb the surge of arrestor strikes on an antenna at the top of a building and ground it, thus providing full arrestor protection for transceivers, receivers, etc.
The Lighting Arrestor CA-23RP Specification:
* Frequency range: DC to 2500MHz
* VSWR: Less than1.1
* Loss: Less than 0.2dB
* Max Power Rating: 400w PEP
* Connector: Type N female – Type N male
* Impulse Wave Discharge Voltage: 1000v
* Impulse Wave Discharge Capacity: 6000A
* Impulse Wave Retention Discharge Capacity: DC350v ± 20%
* Insulating Resistance DC100v: Over 10,000M ohms
* Weight: 0.25 lbs. / 113g
* Dimensions: 3.1"x1.6"x0.8" / 77Wx41Hx20D mm
