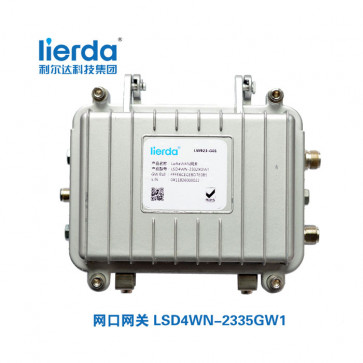

Lierda LSD4WN-2335XGW1 (LW470-G01) LaRaWAN Gateway

Lierda LSD4WN-2335XGW1 is the first -generation LaRaWAN Gateway Lierda developed. It is LoRaWAN protocol supported, implement the physical layer function of LoRa, and support upstream multi-channel currency. It is industrial device which can be against bad environment, and can be customized by customers for different applications.

Lierda LSD4WN-2335XGW1 gateway specifications:

* Recommended power adapter parameters: 12 V 2A，Model HX08-1202（2000）；

* Supported Accessories:

1.Power Adapter：HX08-1202（2000）

2.MCRFM(433MHz475MHz485MHz495MHz868MHz915MHz)

3.LoRa omnidirectional antenna（433MHz480MHz495MHz868MHz915MHz）

4.PFM（V2.0V3.0）

5.GPS and GPS omnidirectional antenna

6.Build-in 3/4G router and LTE antenna

* RF Parameter：depend on MCRFM；

* Deployment Type：Indoor/outdoor, industrial grade

* Protocol standard: CN470

* Channel: 8RX/1TX

* Working mode: half-duplex TDD

* Transmitting power: 27dBm max

* Sensetivity: -139.5dBm@SF12

* Working Temperature: -40～+85℃

* Protection: IP67

* Dimensions: 215 x 180 x 80 mm

* Speed: 4Kbps

* Voltage: 12V DC, 5A
