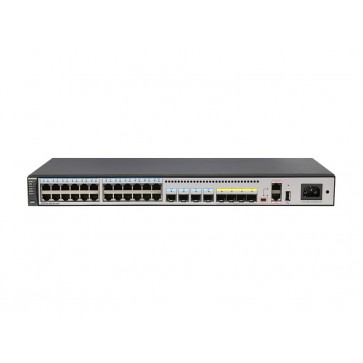

Huawei S5720-36PC-EI-AC Gigabit Ethernet Switch

* 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 1,000 Base-X SFP ports

* One extended slot

* Double hot-swappable AC/DC power supplies, one AC power module is configured by default

* Forwarding performance: 78 Mpps

* Switching capacity: 598 Gbit/s

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei S5720-36PC-EI-AC Gigabit Ethernet Switch provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.

Huawei S5720-36PC-EI-AC Switch Decriptions:

* 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 1,000 Base-X SFP ports

* One extended slot

* Double hot-swappable AC/DC power supplies, one AC power module is configured by default

* Forwarding performance: 78 Mpps

* Switching capacity: 598 Gbit/s


Huawei S5720-36PC-EI-AC Switch technical specifications:

* Fixed Ports: 28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 Gig SFP

* Extended Slot: One extended slot that supports an uplink interface card or private stack card

* SDRAM: 2 GB/Flash: 340 MB

* MAC Address Table

- IEEE 802.1d
- 64K MAC address entries
- MAC address learning and aging
- Static, dynamic, and blackhole MAC address entries
- Packet filtering based on source MAC addresses


- 4K VLANs
- Guest VLAN and voice VLAN
- VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
- 1:1 and N:1 VLAN mapping
- VLAN-based transparent transmission of protocol packets

* Jumbo Frame: 12K

* Ring Protection

- RRPP ring topology and RRPP multi-instance
- Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
- Smart Ethernet Protection (SEP), G.8032 Ethernet Ring Protection Switching (ERPS)
- STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
- BPDU protection, root protection, and loop protection
- BPDU tunnel



* IP Routing: Static routing, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing

* Multicast Forwarding

- IGMP v1/v2/v3 snooping and IGMP fast leave
- Multicast forwarding in a VLAN and multicast replication between VLANs
- Multicast load splitting among trunk member ports
- Controllable multicast
- Layer 2 multicast control
- Port-based multicast traffic statistics collection
- IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
- Multicast Source Discovery Protocol (MSDP)


- Inbound and outbound traffic rate limiting on a port
- Packet redirection
- Broadcast storm control
- Port-based traffic policing and two-rate and three-color CAR
- Eight queues per port, Weighted Round Robin (WRR), Deficit Round Robin (DRR)
- Strict Priority (SP), WRR + SP, and DRR + SP queue scheduling algorithms
- Weighted Random Early Detection (WRED)
- Re-marking of the 802.1p priority and DSCP value of packets
- Packet filtering based on Layer 2 to Layer 4 information, including source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
- Per queue rate limiting and interface traffic shaping
- 1:1, N:1, N:4 port mirroring
- VLAN mirroring

* Security Features

- Hierarchical user management and password protection
- DoS attack defense, ARP attack defense, and ICMP attack defense
- Binding of the IP address, MAC address, interface number, and VLAN ID of a user
- Port isolation, port security, and sticky MAC
- MAC Forced Forwarding (MFF)
- Blackhole MAC address entries
- Limit on the number of learned MAC addresses
- IEEE 802.1x authentication and the limit on the number of users on an interface
- AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
- SSH v2.0
- Hypertext Transfer Protocol Secure (HTTPS)
- CPU defense
- Blacklist and whitelist
- MACSec

* Access Security

- DHCP Relay
- DHCP Server
- DHCP Snooping
- DHCP Client
- DHCP Security

* Port Aggregation

- Up to 128 trunk groups
- Up to 8 member interfaces in each trunk group

* Reliability

- Ethernet OAM (IEEE 802.3ah and 802.1ag)
- ITU-Y.1731
- BFD for BGP/IS-IS/OSPF/static route

* Management and Maintenance

- iStack
- Virtual cable test
- SNMPv1/v2c/v3
- Web-based network management system
- System logs and multi-level alarms
- sFlow
- Secure Copy Protocol (SCP), TFTP, FTP
- Store dual software images and configuration files
- 802.3az Energy Efficient Ethernet (EEE)

* Interoperability

- VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
- Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
- VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)

* Surge Protection: Surge protection capability of service ports: 6 kV

* Operating Environment Operating temperature:

- Zero to 1,800m altitude: 0°C to 45°C
- 1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m.
- Relative humidity: 5% to 95% (non-condensing)

* Input Voltage
- Rated voltage range: 100V to 240V, 50 Hz/60 Hz
- Maximum voltage range: 90V to 264V, 47 Hz/63 Hz
- Rated voltage range: –48V to –60V
- Maximum voltage range: –36V to –72V

* Dimensions: 442 mm x 420 mm x 44.4 mm

* Front Power Input: No

* Typical Power Consumption: 38.3W
