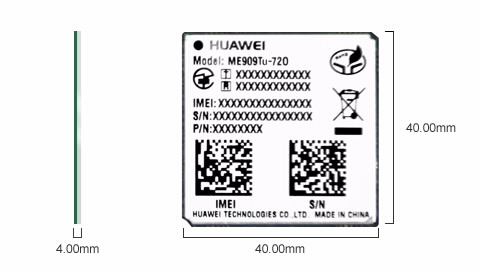

HUAWEI ME909Tu-720 4G LGA LTE Module

HUAWEI ME909Tu-720 is an automotive grade LTE module for Japan network coverage. It is pin-to-pin compatible with MU609T, offers full set of telematics features and functions, including ecall, GNSS, FOTA...etc. ME909T is fully approved, including regional, country and carrier approvals. It is perfect for applications like telematics, fleet management, emergency call, breakdown or roadside assistance. It has two brother models: ME909Tu-120 and ME909Tu-520.

Technical Specifications:

Form Factor: LGA

Bands

* LTE B1/B11/B13/B18/B19/B21

* HSPA+/UMTS B1/B6/B19

* CDMA/EVDO BC0/BC6

* Data Transfer Rate

* LTE FDD: DL(100Mbps)/UL(50Mbps)

* DC-HSPA+: DL(42 Mbps)/ UL( 5.76 Mbps)

* EVDO RevB: DL(14.7Mbps)/UL(5.4Mbps)

Interface

* Antenna interface

* 140-pin LGA connector

* Power supply

* 1*8 UART & 1*2 UART&1*4 UART

* USB 2.0 High speed

* PCM Voice

* SIM Interface (1.8V/3.0V)

* Reset

* Multiple GPIOs

* SDIO

* HSIC

* I2C

* Power_On off

Power Supply

* Normal:3.8 V to 4.2 V (typical: 4 V)

* Voice

* PCM Voice

Temp Range

* Normal Operation: -40℃ to 85℃

* Storage: -40℃ to 95℃

GPS/Glonass

* GPS

* A-GPS

* GLONASS

Special Features

* FOTA

* STK

Operating System: Linux, Android, Win CE, QNX

Approvals

* TELEC/JATE

* GCF

* RoHS Compliant
