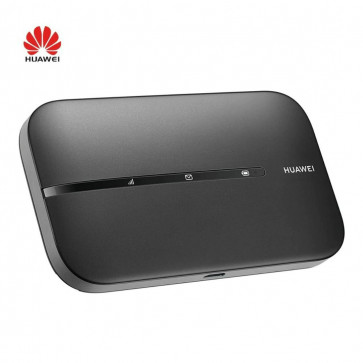

Huawei E5783B-230 4G LTE Mobile WiFi 3 Pro

Huawei E5783B-230 is a new 4G LTE Cat6 mobile WiFi router which can support peak download speeds up to 300Mbps. It's a multi-mode wireless terminal forSOHO (Small Office and Home Office) and business professionals. Users can connect the micro USB port on the E5783B-230 to a computer using a microUSB data cable, or connect multiple devices to the E5783B-230 over Wi-Fi.

When only the 2.4 GHZ or 5 GHz Wi-Fi network is enabled, the E5783B-230 supports the connection of up to 16 wireless devices at the same time. When both the 2.4 GHz and 5 GHz networks are enabled, up to 8 devices can connect to the 2.4 GHz Wi-Fi network and another 8 devices can connect to the 5 GHz Wi-Fi network.

Huawei E5783B-230 LTE MiFi Specifications:

* Product type: 4G LTE Mobile Hotspot

* Frequency Bands:
- LTE FDD: B1/B3/B7/B8/B20/B28/B32
- LTE TDD: B38/B40(2300~2395MHz)
- LTE CA：
> UL CA：Intra-Band continuous：B3+B3,B7+B7
> DL CA:
Intra-Band continuous：B1+B1, B3+B3, B7+B7, B38+B38, B40+B40
Intra-Band non-continuous：B3+B3, B7+B7
Intra-Band：B1+B8(B1 as PCC), B1+B20, B1+B28(B1 as PCC), B3+B7, B3+B8, B3+B20, B3+B28(B3 as PCC), B7+B8, B7+B20, B7+B28(B7 as PCC), B20+B32(B20 as PCC), B20+B38(B20 as PCC), B1+B3

* DC-HSPA+/HSPA+/HSPA/UMTS: Band 1(2100MHz)/Band8(900MHz)

* Data rates:
- LTE FDD Cat4 (DL) packet data service of up to 150 Mbps
- LTE FDD Cat6 (DL) packet data service of up to 300 Mbps
- LTE FDD Cat4 (UL) packet data service of up to 50 Mbps
- LTE FDD Cat6 (UL) packet data service of up to 100 Mbps
- LTE TDD Cat4 (DL) packet data service of up to 112 Mbps
- LTE TDD Cat6 (DL) packet data service of up to 224 Mbps
- LTE TDD (UL) packet data service of up to 10 Mbps
- DC-HSPA+ (DL) packet data service of up to 42 Mbps
- DC-HSPA+ (UL) packet data service of up to 5.76 Mbps
- HSPA+ (DL) packet data service of up to 21 Mbps
- HSPA+ (UL) packet data service of up to 5.76 Mbps
- HSDPA (DL) packet data service of up to 14.4 Mbps
- UMTS (UL/DL) packet data service of up to 384 Kbps

* Wi-Fi/WLAN: IEEE 802.11a/b/g/n/ac

* WCDMA/HSPA/HSPA+: Conforms to 3GPP

* SMS based on LTE/UMTS

* Built-in LTE/UMTS and Wi-Fi antenna

* 2.4 GHz and 5 GHz Wi-Fi

* Power consumption : 3.5 W

* Charger (Optional) AC: 100–240 V/DC: 5 V, 1 A

* Indicators: LED signal, battery, and SMS indicators

* Buttons: Power button, RESET button

* LTE/3G/Wi-Fi auto offload

* Compatible with HUAWEI SmartHome app

* Plug and Play

* IPv4v6 dual stack

* Built-in DHCP Server, DNS RELAY, and NAT

* Online software upgrade

* Traffic statistics

* WPS

* Standard Micro USB port

* Battery
- Rechargeable lithium battery (Removable) Capacity: 3.8 V, 1500 mAh
- Maximum working hours: 6 (depending on the network)
- Maximum standby hours: 350 (depending on the network)

* External ports
- External ports Micro USB port
- micro-SIM card slot (3FF)

* Temperature
- Temperature Operating temperature: 0℃ to 35℃
- Storage temperature: -20℃ to +70℃

* Humidity: 5% to 95% (non-condensing)

* Compatible with Windows 7, Windows 8, Windows 8.1, Windows 10 (excluding Windows RT), MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades
