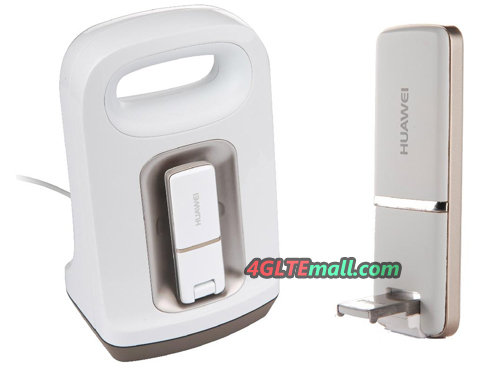

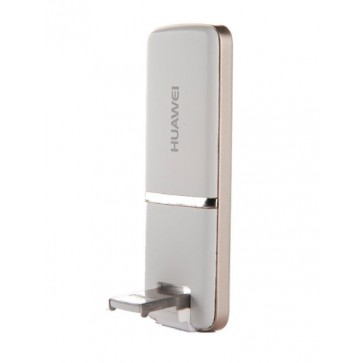

HUAWEI BM358 WiMAX USB Stick

HUAWEI BM358 WiMAX USB Modem is one of the new WiMAX 4G USB Surfstick based on IEEE 802.16e-2005. It support WiMAX 2.3GHz-2.4GHz. HUAWEI BM358 has many basic functions that meet the requirements of our customers. It supports peak downlink speed at 20Mbps and uplink at 5 Mbps. If with MIMO, the peak speed could reach 40 Mbps.

Specifications:

* Frequency: 2.3-2.4GHz

* Standard: IEEE802.16e-2005 Wave 2 (WiMAX)

* Radio access method: TDD modulation

* Channel bandwidth: 10MHz

* Modulation: QPSK, 16QAM, 64QAM (DL only), CC and CTC modulation coding

* Transmit Power: 23dBm

* Interface: Plug-and-play USB 2.0

* Antenna: 2Rx 1Tx

* MIMO: Matrix A and B

* Power Control: Open and closed loop power control (Adaptive Modulation)

* QoS management: ertPS, nrtPS, rtPS and BE

* Max power consumption < 1.75W

* Supported OS Windows XP – 32-bit version only, Windows Vista and Windows 7, Mac OS 10.5 and above (32-bit only)

* Dimensions: 77 x 28 x 10mm

* Weight: 22g
