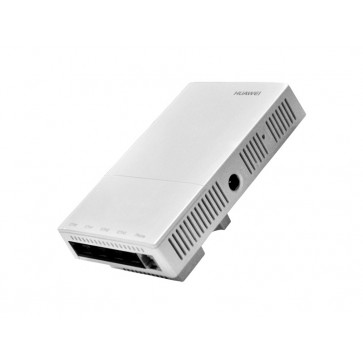

Huawei AP2030DN Wall Plate Access Point

Huawei AP2030DN is the latest-generation gigabit wall plate access point (AP) that complies with 802.11ac Wave 1 standards. It uses an 86 mm x 86 mm plate design and can be easily installed in a standard 86-type junction box. The AP2030DN's innovative design boasts built-in antennas, a hidden indicator, and a sliding panel, applicable to environments with densely distributed small rooms, such as hotels, dormitories, hospitals, and offices. It provides enhanced service support capabilities and features high security, simple network deployment,automatic AC discovery and configuration, and real-time management and maintenance. The AP2030DN can connect to wireless terminals through wireless connections or to wired terminals using wired cables. This makes it the ideal choice of customers to construct indoor distributed networks.

Huawei AP2030DN Wireless Access Point Features:

* High-speed wireless access services: supports 2.4 GHz and 5 GHz frequency bands, 2 x 2 MIMO, 300 Mbit/s at 2.4 GHz, 867 Mbit/s at 5 GHz, and a rate of up to 1.167 Gbit/s.

* Multiple ports: includes one uplink GE port, four downlink FE ports, and one RJ11 phone port, particularly suited to hotels, apartments, and offices.

* Easy to install: uses an 86 mm plate design and can be easily installed in an 86-type box, reducing costs by making full use of existing network cable resources.

* Flexible mounting options: can be mounted to a ceiling or wall using the special mounting bracket.

* Pass-through wired port: users can connect to a wired port to access the Internet when wireless connections are unavailable.

Huawei AP2030DN AP Technical Specifications:

* System memory: 128 MB DDR2/ 32 MB Flash

* Power input
- DC: 12 V ± 10%
- PoE: in compliance with IEEE 802.3af/at

* Maximum power consumption: 8.7W (Note: Actual maximum power consumption depends on local laws and regulations.)

* Operating temperature and altitude
- 32oF to 104oF (0oC to 40oC)
- -196.8 ft. to 16,404.1 ft. (-60m to 5,000m)

* Storage temperature: –40oC to +70oC

* Operating humidity: 5% to 95% (Non-condensing)

* Ingress protection rating: IP20

* Atmospheric pressure: 20.6 inHg to 31.3 inHg (70 kPa to 106 kPa)

* Antenna: Built-in antenna

* Antenna Gain:
- 2.4 GHz: 2 dBi
- 5 GHz: 3 dBi

* Maximum Number of Concurrent Users: ≤ 64

* Maximum number of VAPs for each radio 8

* Channel Rates
- 802.11b: 1, 2, 5.5, and 11 Mbit/s
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
- 802.11n: 6.5 to 300 Mbit/s
- 802.11ac: 6.5 to 867 Mbit/s

* Interface type
- Uplink: 1 x GE interface (RJ45, PoE)
- Downlink: 4 x FE interface (RJ45)
- Pass-through: 2 x RJ11 interface

* LED indicator
- Hidden LED indicator: turns on after the powered on and indicates the power-on, startup, running, alarm, and fault status of the system.

* Dimensions (H x W x D): 1.6 in. x 3.3 in. x 5.5 in. (41.5 mm x 86 mm x 140 mm)

* Weight: 0.5 lb. (0.23 kg)
