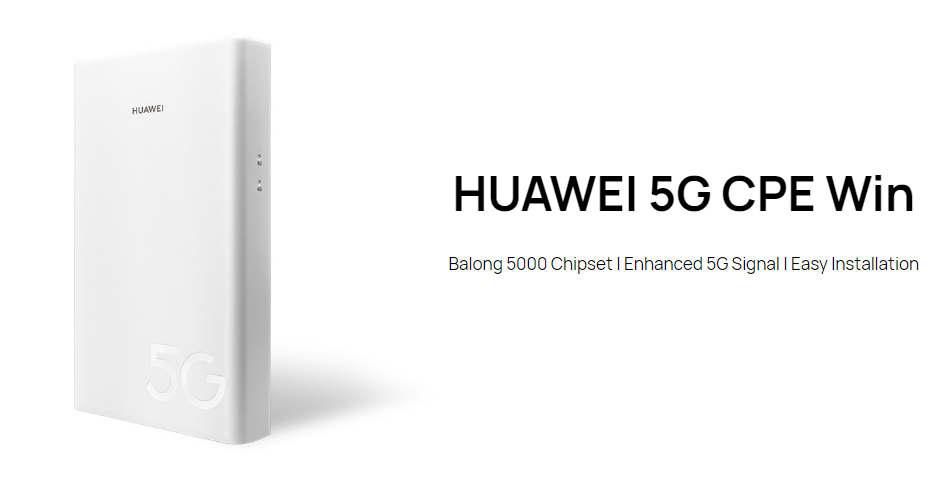

Huawei 5G CPE Win H312-371
* Peak download rate up to 1.6Gbps
* Huawei 5G Balong 5000 chipset
* 4G/5G Dual connectivity
* Communication Standard: 3GPP Release 15
* Network Mode: NSA / SA
Availability: In stock
Regular Price: $1,399.00
Special Price $1,099.00

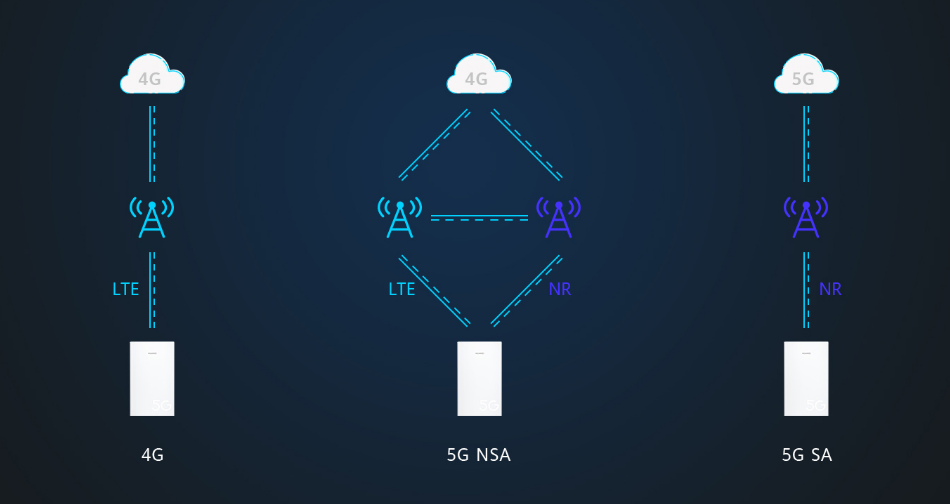

Unlock the Power of 5G
-------------------------------------------------------------------
Built with Balong 5000, the first multi-mode 5G chipset, HUAWEI 5G CPE Win supports both NSA and SA network modes with super high speed. Backwards, it also uses 4G as an alternative plan if the area does not have a 5G network.

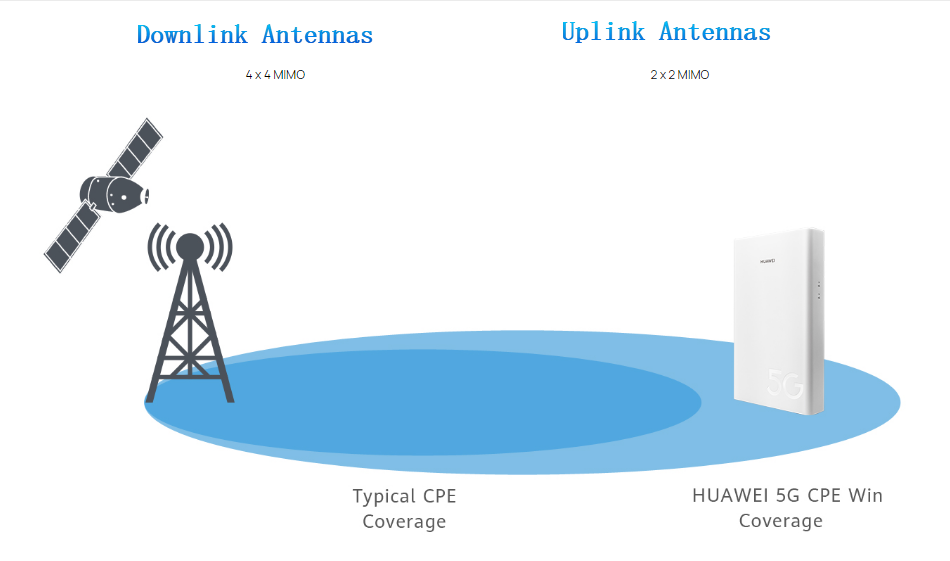

360° Signal Reception for Superior Connectivity
-------------------------------------------------------------------
The 4 x 5.5dBi omni-directional antennas design ensures consistent coverage over a broad area with high-bandwidth 5G signal. Plus, the uplink signal strength is boosted to 26dBm under SA mode. And the signal's edge rate is also increased by 20%.

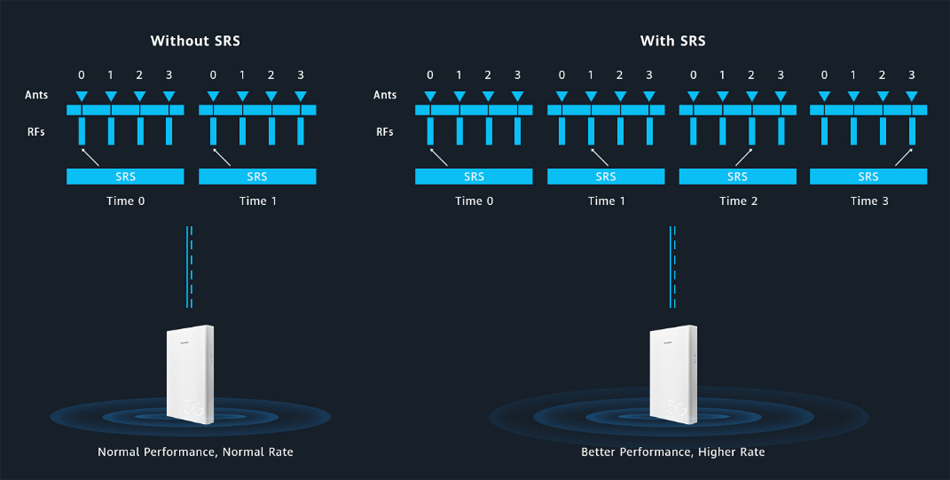

Smart Switch, Powerful Performance
-------------------------------------------------------------------
Thanks to the 5G SRS (Surrronding Reference Signal) Antenna Switching by 4 antennas, HUAWEI 5G CPE Win detects the signal in real time to provide you with reliable performance even when encountering interference. It also helps to accelerate speed by 20% by intelligently pairing different channels.

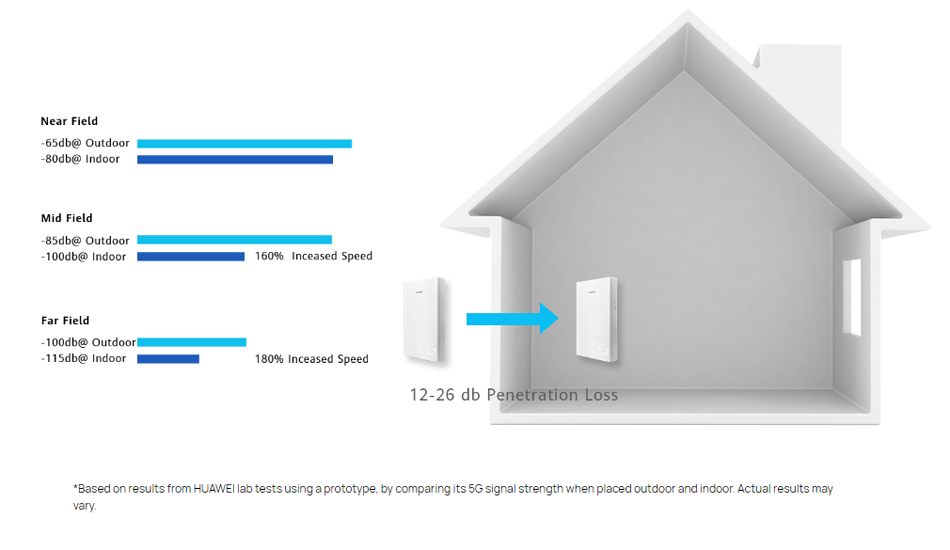

Outdoor CPE for Better 5G Signal
-------------------------------------------------------------------
HUAWEI 5G CPE Win features outdoor installation, which makes it easier to receive 5G signal, even in remote regions where 5G signal is weak.

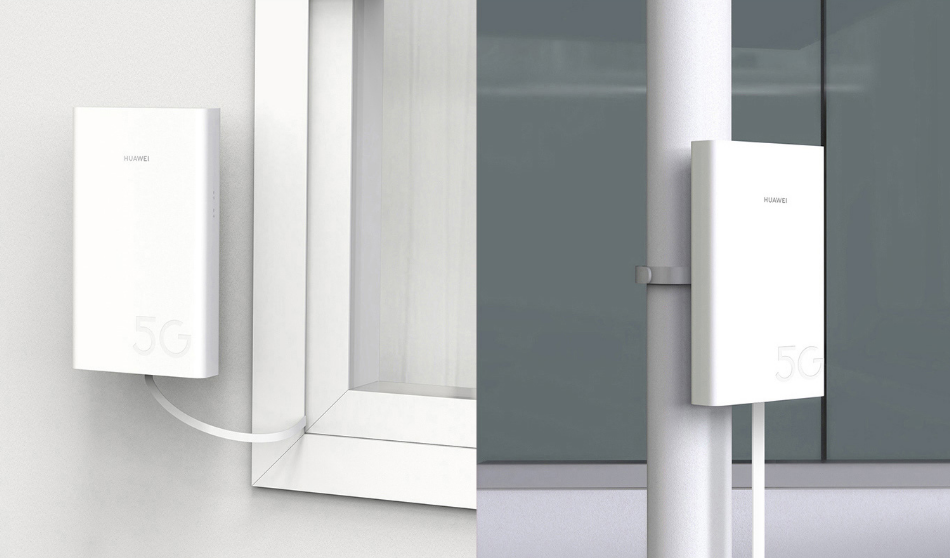

Compact Size, Simple Installation
-------------------------------------------------------------------
Providing you two ways of installation, wall-mounted and pole-mounted installation, it is also toughly built to withstand all kinds of weather conditions, rain or shine.

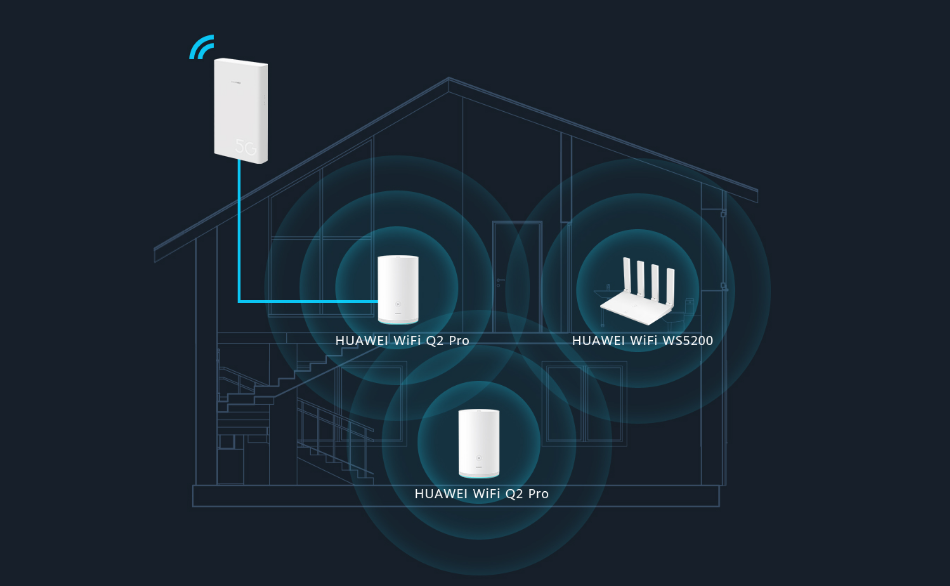

Multi-Scenario 5G Application
-------------------------------------------------------------------
Equipped with a Gigabit Ethernet port, this HUAWEI 5G CPE Win can be connected to a host of devices with Ethernet cables, making it possible to be applied in varied scenarios.
Huawei 5G CPE Win H312-371 Specifications:
* Product type: 5G outdoor CPE
* Chipset: Huawei 5G Balong 5000 chipset
* Communication Standard: 3GPP Release 15
* Network Mode: NSA / SA(*SA capabilities depend on the available network and software version, which need to be customized.)
* Support 5G Frequency Band: n41/n77/n78/n79
* 5G Transmission Rate: 1.65Gbps / 250Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)
* 4G Transmission Rate: 1.6Gbps / 150Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)
* Wireless Frequency Band: 2.4GHz, only for installation and configuration, not for internet access
* Antenna
- 5G / 4G Antenna Type: 5G / 4G main and diversity antennas
- WLAN Antenna Type: Built-in 2.4GHz Wi-Fi antenna
* Network Port: 1 GE Lan port, 1 SIM card slot (Nano-SIM)
* Button: Reset
* Led Indicator: 5G / 4G indicator
* Power Supply: < 24W
* AC/DC Power Supply: AC: 100V - 240V 50Hz/60Hz, DC: 19V/1.26A
* HUAWEI AI Life App: Mobile network (5G / 4G) access, Ethernet access, SMS service, firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN tunnel / VPN penetration, IPv6 and IPv6 / IPv4 dual stack, multi-APN, WebUI, HOTA, etc
* Operating temperature: -40 °C ~ 55 °C (no solar radiation), storage temperature: -40 °C ~ + 70 °C
* Humidity: 5% ~ 95% (non-condensing)
* Easy to install on windowsill/wall/pole for better signal
* IP65 Waterproof and dustproof
* Support POE(Power Over Ethernet)
* Color: White
* Dimensions: 187mm(Depth) x 112mm(Height) x 29.6mm(Width)
* Weight: About 570g (excluding the power adapter)
* Packing List
- HUAWEI 5G CPE Win: 1 (standard configuration)
- PSU: 1 (standard configuration)
- PSU power cable: 1 (standard configuration)
- Ethernet Cable: 1 (standard configuration)
- Base: 1 (standard configuration)
- Adjustable pole strap: 1 (standard configuration)
- Nameplate: 1 (standard configuration)
- Internal hexagon wrench: 1 (standard configuration)
- Screw: 4 (standard configuration)
- Expansion anchor: 4 (standard configuration)
- Quick Start: 1 (standard configuration)
- Warranty Card: 1 (optional)
