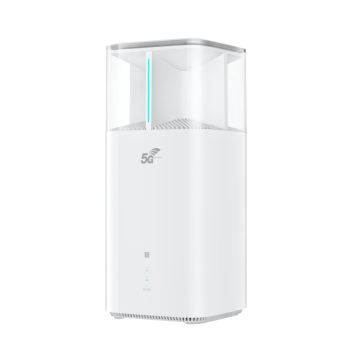

Huawei 5G CPE Ultra 6 H168-383 Tri-band WiFi 7 Router

Huawei 5G CPE Ultra 6 (H168-383)—also sold under Huawei's Brovi sub-brand—is a premium indoor wireless router supporting 5G-Advanced (5G-A) and Wi-Fi 7 technology. The advanced indoor 5G-Advanced (5.5G) wireless router can deliver download speeds up to 11.7 Gbps.

Huawei 5G CPE Ultra 6 H168-383 Specifications:

Network & Cellular
--------------------------------------------
* Standard: 3GPP Release 18 (5G-Advanced)
* Modes: NSA / SA (Supports 3CC Multi-Carrier Aggregation)
* Peak Cellular Speed: Up to 11.7 Gbps download / 2.5 Gbps upload
* 5G Bands (FDD): n1 / n3 / n5 / n7 / n8 / n20 / n28 / n71 / n75
* 5G Bands (TDD): n38 / n40 / n41 / n77 / n78 / n79
* 4G LTE: Cat 20 download / Cat 18 upload (Bands 1/3/5/7/8/20/28/32/38/40/41/42/43/71)

WI-FI Specifications
--------------------------------------------
* Standard: Wi-Fi 7 (IEEE 802.11be/ax/ac/n/a/g/b)
* Type: Tri-band (2.4 GHz + 5 GHz Low + 5 GHz High)
* Speed Rating: BE6500 / BE7200 class (Up to 5764 Mbps on 5GHz bands)
* Features: Multi-Link Operation (MLO), Beamforming, 14dBi High-Gain 360° built-in antennas
* Device Capacity: Connects 128 to 192 simultaneous users

Ports & Hardware
--------------------------------------------
* Network Ports: 1 x 2.5 Gbps/5GE LAN/WAN port, 1 x 1 Gbps/GE LAN port
* Voice Port: 1 x RJ11 telephone port
* SIM Slot: 1 x Nano-SIM slot (4FF)
* External Antenna: 2 x TS-9 RF connector ports
* Power Supply: 12V / 3A
* Convenience: Supports NFC One-Touch connection

Physical Design
--------------------------------------------
* Dimensions: 116.5 mm x 116.5 mm x 272.5 mm
* Form Factor: Vertical column design with piano finish
