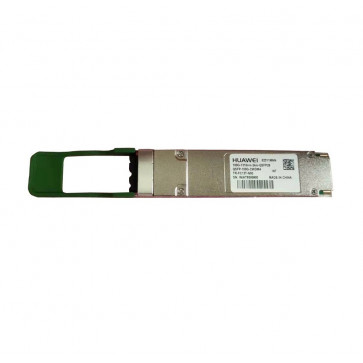

Huawei 02311MNN QSFP-100G-CWDM4 Single-mode Optical Transceiver
Availability: In stock
Huawei 02311MNN QSFP-100G-CWDM4 Transceiver Specifications:
* Module name: QSFP-100G-CWDM4
* Part Number: 02311MNN
* Model: QSFP-100G-CWDM4
* Form factor: QSFP28
* Application standard/Type: 100GBASE-CWDM4
* Connector type: LC
* Optical fiber type: SMF
* Type of the end face of the fiber ceramic ferrule: PC or UPC
* Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
* Transmission rate [bit/s]: 100Gbit/s
* Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 2 km
* Transmitter Optical Characteristics
* Center wavelength [nm]: 1271 nm, 1291 nm, 1311 nm, 1331 nm
- Maximum Tx optical power (AVG) [dBm]: 2.5 dBm
- Minimum Tx optical power (AVG) [dBm]: -6.5 dBm
- Minimum extinction ratio [dBm]: 3.5 dBm
* Receiver Optical Characteristics
- Rx sensitivity (OMA) [dBm]: -9.8 dBm
- Overload power (AVG) [dBm]: 2.5 dBm
