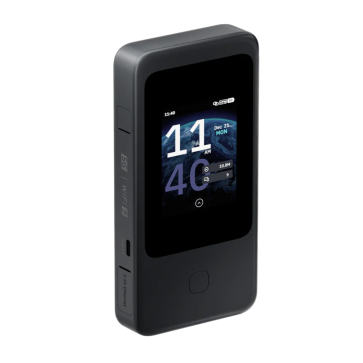

GL.iNet Mudi 7 GL-E5800 5G NR Wi-Fi 7 Travel Router

GL.iNet Mudi 7 (GL-E5800) is a premium, battery-powered 5G NR mobile hotspot and travel router utilizing tri-band Wi-Fi 7 technology. It features an integrated touchscreen for phone-free management, multi-SIM flexibility, and commercial-grade VPN encryption speeds.

Hardware & Core Processing
-------------------------------------------------------
- CPU: Qualcomm Quad-core Processor @ 2.2 GHz
- Memory: 2 GB LPDDR4X RAM
- Internal Storage: 8 GB eMMC
- Display: 2.8-inch color LCD touchscreen (for setup, connection configuration, SMS, and data tracking)

Frequency Bands
-------------------------------------------------------
Mudi 7 GL-E5800-NA Bands(NA Version):
- 5G NR Connectivity: 3GPP Rel-17 NSA/SA operation, Sub-6GHz
- 5G NR NSA: n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71 /n77/n78
- 5G NR SA: n2/ n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41 /n48/n66/n70/n71/n77/n78
- LTE Category: Cat 20 (DL) / Cat 18 (UL)
- LTE-FDD: B2 / B4/ B5/ B7/ B12 / B13 /B14/ B17/ B25 / B26/B29 /B30/B66/ B71
- LTE-TDD: B38 /B41 /B42 / B43 /B48

Mudi 7 GL-E5800-EU Bands(EU Version):
- 5G NR Connectivity: 3GPP Rel-17 NSA/SA operation, Sub-6GHz
- 5G NR NSA: n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n77 / n78
- 5G NR SA: n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n77 / n78
- LTE Category: Cat 20 (DL) / Cat 18 (UL)
- LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32
- LTE-TDD: B38 / B40 / B41 / B42 / B43
- WCDMA: B1 / B5 / B8

Wireless Networking (Wi-Fi 7)
-------------------------------------------------------
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
- Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
- Max Wireless Throughput: Up to 5.76 Gbps (combined peak)
* 6 GHz Band Speed: Up to 5764 Mbps
* 5 GHz Band Speed: Up to 2882 Mbps
* 2.4 GHz Band Speed: Up to 688 Mbps
- Max Device Connections: Supports up to 64 simultaneous client devices

Cellular Capabilities
-------------------------------------------------------
- Cellular Network: 5G NR Sub-6 GHz (Supports NSA and SA operation)
- Modem Engine: Qualcomm Dragonwing MBB Gen 3 (Snapdragon X72)
- Peak 5G Downlink Speed: Up to 4.67 Gbps
- SIM Card Architecture: Dual SIM Dual Standby (DSDS)
* 2 x Physical Nano-SIM slots
* 1 x Onboard programmable eSIM
- Antenna Array: 8 x Total Internal Antennas (6 x Dedicated Cellular, 2 x Tri-band Wi-Fi)
- External Antennas: 2 x TS-9 ports for external cellular antenna expansion

Physical Interfaces & Ports
-------------------------------------------------------
- Wired Ethernet: 1 x 2.5 Gigabit Ethernet Port (Configurable as WAN or LAN, 10/100/1000/2500 Mbps)
- USB Port 1: 1 x USB Type-C (Power Input / Power Output charging only)
- USB Port 2: 1 x USB Type-C (USB 3.1 Gen 2 up to 10 Gbps; Supports Power I/O, USB Tethering, and USB OTG)

Power, Battery & Charging
-------------------------------------------------------
- Battery Capacity: 5380 mAh (20.72 Wh) Lithium-ion battery
- Battery Design: Removable / Replaceable (Can run 24/7 directly off USB power without battery inserted)
- Run Time: Up to 13.5 hours of continuous operation
- Power Input: Type-C PD (Power Delivery) / PPS, 5V to 12V
- Max Charging Rate: 24W PD Fast Charging
- Power Consumption: Less than 30W

Software & Security Features
-------------------------------------------------------
- Operating System: Pre-installed OpenWrt firmware environment
- VPN Performance: High-speed hardware acceleration
* OpenVPN-DCO Throughput: Up to 700 Mbps
* WireGuard VPN Throughput: Up to 600 Mbps
- Built-in Services: AdGuard Home (local network ad blocking), Flow Control (parental controls), Remote Access via Good Cloud

Mechanical & Environmental
-------------------------------------------------------
- Dimensions: 157 mm x 75 mm x 22.8 mm
- Weight: 300 grams (including battery)
- Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Regional Variations: Ships in dedicated North American (NA) and European Union (EU) band profiles
