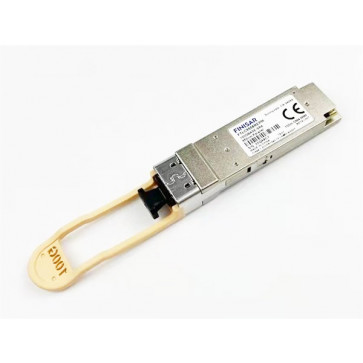

Finisar FTLC9558REPM FTLC9558REPM-TE 100G 100m Gen3 QSFP28 Optical Transceiver

Finisar FTLC9558REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Note AN-2141. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Finisar FTLC9558REPM Features:

* Hot-pluggable QSFP28 form factor

* Supports 103.1Gb/s aggregate bit rate

* Power dissipation <2.5W

* RoHS compliant

* Commercial case temperature range of 0°C to 70°C

* Single 3.3V power supply

* Maximum link length of 100m on OM4 Multimode Fiber (MMF)

* 4x25Gb/s 850nm VCSEL-based transmitter

* 4x25G electrical interface

* Single MPO12 receptacle

* I2C management interface

* Applications: 100GBASE-SR4 100G Ethernet

Finisar FTLC9558REPM Specifications:

* Distance: 100 m

* Data Rate (max): 103.1 Gb/s

* Protocol: 25G Ethernet Compliant 100G Ethernet Compliant

* Low End Case Temperature (°C): 0

* High End Case Temperature (°C): 70

* Diagnostics: Digital

* Transmitter: 4x VCSEL

* Receiver: PIN

* Voltage Supply: 3.3

* Connector: MPO (MTP12)

* Wavelength: 850nm Band
