Fibocom NUCLEO-L610-IoT Development Kit
* Fibocom IOT development kit
* Chipset: UNISOC's 8910DM platform
* Target Region: Asia, Europe, Australia
* 2 SMA antenna interfaces + 1 USB to serial port
Availability: Out of stock

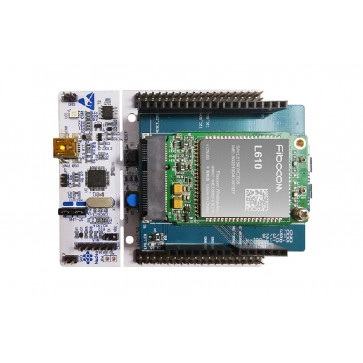

Fibocom NUCLEO-L610-IoT development kit consists of STM32 Nucleo-64 development board and MiniPCIe-Arduino adapter board (EXA–IOT–DS), L610 MiniPCIe module board (L610-Mini-DS).
MiniPCIe-Arduino adapter board can flexibly adapt to each STM32 Nucleo-64 development board.
Fibocom L610 module of L610 MiniPCIe module board (L610-Mini-DS) is a LTE cat 1 wireless communication module based on UNISOC's 8910DM platform. The product supports LTE and GSM dual-mode communication. L610-CN covers the frequency bands of major operators in Asia, and L610-EU and L610-LA of the same series cover the frequency bands of major operators in Europe and Latin America respectively.
Based on Fibocom L610-CN CAT1 module(UNISOC's 8910DM platform), it covers the frequency band of major operators in Asia, and L610-EU and L610-LA of the same series cover the frequency bands of major operators in Europe and Latin America respectively.
Integrating Arduino interface, it can be developed with STM32 Nucleo-64 development board. Rich routines, TCP, UDP, HTTP, etc., support multiple series of STM32 Nucleo-64 development board, and more functional routine resources are under continuous development.
The minipcie Arduino adapter board (EXA–IOT–DS) is equipped with a serial port chip, which can be used to debug the module by PC alone.
Fibocom NUCLEO-L610-IoT development kit Specifications:
* Supply voltage: 5V(USB)
* Frequency Band: LTE FDD: Band 1/3/5/8
* Interface:
- 2 SMA antenna interfaces
- 1 Arduino interface
- 1 USB to serial port
* Tx Power
- GSM900: 32.5 dBm± 1dB
- DCS1800: 29.5dBm± 1dB
- LTE FDD: 23.0dBm± 1dB
- LTE TDD: 23.0dBm± 1dB
* Operating Temperature: -30°C~+85°C
* Storage Temperature: -40℃~+85℃
