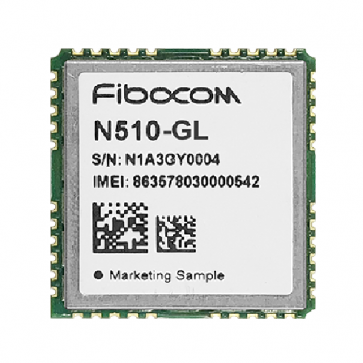

Fibocom N510-GL LTE IoT Module
* Fibocom LTE IoT Module
* Form factor: LCC + LGA
* Support LTE Cat-NB2: B1/2/3/4/5/8/12/13/18/19/20/25/26/28/66/71/85
* LTE NB1: 62.5Kbps (UL)/ 26.15Kbps (DL)
* LTE NB2: 158.5Kbps (UL)/ 126.8Kbps (DL)
* Target Region: Global
Availability: In stock
Fibocom N510-GL module is a high-performance Internet of Things module tailor-made for the global IoT market, and is packaged in LCC+LGA. Compatible with Fibocom 510 series module, easy for future upgrading.
It is an ideal Internet of Things module supporting LTE Cat NB1/NB2, especially suitable for IoT industry applications with low power consumption and ultra-small size as core requirement. Relying on the existing 4G network, the NB-IoT module is widely used in Internet of Things scenarios such as smart meter, smart home, smart Parking, wearable devices, asset tracking, smart cities.
Fibocom N510-GL Module Specifications:
* LTE FDD: B1/2/3/4/5/8/12/13/18/19/20/25/26/28/66/71/85
* Dimension: 22.2x20.2x2.1mm
* Operating Temperature: -40~+85℃
* Storage Temperature: -45~+90° C
* Operating Voltage: 3.3V~4.5V
* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands
* TX Power: 23dBm±1dB
* Data rates:
- Cat-NB1: Multi-tone: 62.5Kbps (UL)/ 26.15Kbps (DL), Single-tone: 15.6Kbps (UL)
- Cat-NB2: Multi-tone: 158.5Kbps (UL)/ 126.8Kbps (DL), Single-tone: 18.1Kbps (UL)
* Function
- TCP/UDP/IPV4/IPV6/COAP/LWM2M/MQTT/HTTP/NTP
* FOTA: FOTA
- 2.7uA@PSM
- 154uA@eDRX
- 2.1mA@DRX
* Interfaces
- USIM: 1.8V/3V
* OS Drivers: Linux/Windows
* Certifications
- CE/NCC/ FCC/ RoHS/HF/ PTCRB/GCF/VDF*/DT/Verizon*TMO
