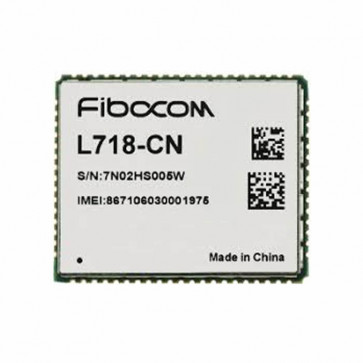

Fibocom L718-CN LTE Cat4 Module

Fibocom L718-CN is an LGA-packed LCC wireless communication module, supporting LTE TDD/LTE FDD/WCDMA/TD-SCDMA/GSM technologies. Based on LTE Cat4, the Fibocom L718-CN module could achieve download speed up to 150Mbps and upload speed to 50Mbps. It also supports M2M functions such as HTTP/HTTPS, ECM/RNDIS, PPP, FOTA, and Audio etc..

Fibocom L718-CN module Specifications and Features:

* LTE Cat4 module

* Form factor: LGA

* Supported frequency bands:
- 4G LTE FDD: Band 1, 3, 5, 8
- 4G LTE TDD: Band 34, 38, 39, 40, 41
- WCDMA: Band 1,8
- TD-SCDMA: Band 34, 39
- GSM/GPRS/EDGE: 900/1800MHz

* Data Rates:
- LTE FDD: 150Mbps DL, 50Mbps UL
- LTE TDD: 112Mbps DL, 10Mbps UL
- UMTS: 384 kbps DL, 384 kbps UL
- HSPA/HSPA+: 21Mbps DL, 5.76Mbps UL
- TD-SCDMA: 4.2Mbps DL, 2.2Mbps UL
- EDGE: 236.8Kbps DL, 236.8Kbps UL
- GPRS: 85.6Kbps DL, 85.6Kbps UL

* TX power
- LTE FDD：23±1dBm
- LTE TDD: 23.0dBm±1dB
- WCDMA : 23.5dBm±1dB
- GSM：900 32.5±1dBm
- DCS：1800 29.5±1dBm

* MUX: Basic Mode

* SMS: MO/MT Text and PDU modes

* HTTP/HTTPS

* ECM/RNDIS

* PPP

* FOTA

* Audio

* Functional Interface
- SIM Card: 1.8V/3V x 1
- USB 2.0 x 1
- 4 line UART x 1
- 2 line UART x 1
- EINT
- System Indicator
- Clock
- ADC x 1
- GPIO x 8
- I2C x1
- I2S x1
- SPI x1

* Driver: Linux, Android

* AT commands: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands

* Operating Voltage: 3.3V～4.4V

* Operating Temperature：-30 ~ +75℃

* Optional operating temperature：-40℃~+85℃

* Storage Temperature： -40°C ～+85°C

* Approval: RoHS/CCC/SRRC/NAL

* Size: 33.0 x 27.0 x 2.3mm
