Fibocom FR-L610-Tracker

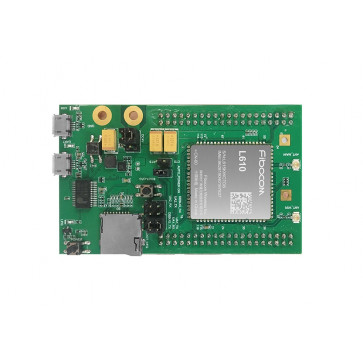

Fibocom FR-L610-Tracker-00 is a Tracker reference design.In terms of hardware structure, AP + modem is adopted,which can support positioning monitoring, intelligent tracking and other functions; in hardware, it supports multiple AP reference designs and antenna design; in software, it supports mqtt protocol integration and Alibaba cloud integration; it is open-source for customers and supports customized solutions.

Fibocom FR-L610-Tracker Specifications:

* AP: Series of STM32

* POWER: 12V DC, Reserved charging circuit

* Low power consumption mode:
- Timing start, and automatic sleep mechanism
- When the timing is 0, it is in continuous working state
- Enter shutdown or low power consumption state when not working
- Supports heartbeat mode

* Wireless Module: L610, LTE CAT1

* GNSS:
- Huada Beidou TAU120x dual frequency positioning module
- Or 1103 single frequency module
- Or dual frequency + RTK Positioning Module
- Reference design compatible with a variety of positioning module package, optional

Basic Function
- Positioning monitoring
- Base station positioning (use lbs function of l610 to report longitude and latitude information)
- Electricity detection
- Intelligent tracking + alarm mode (timing report mode）
- Low power mode (configurable with alarm mode, 1 out of 2)
- Blind zone supplementary transmission
- SMS configuration, data configuration
- Static drift calibration upload
- Important parameter backup protection function
