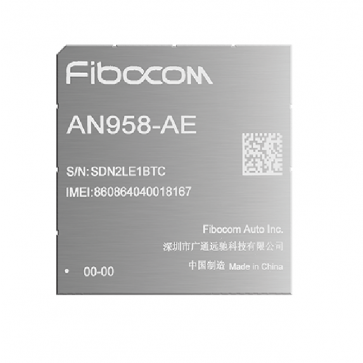

Fibocom AN958-AE 5G C-V2X Module

Fibocom AN958-AE is a global 5G sub-6 communication module launched by FIBOCOM Auto Inc. It supports two network architectures: SA and NSA, with faster transmission speed, better carrying capacity and low network latency.

Fibocom AN958-AE supports 5G sub-6 band and is compatible with LTE, WCDMA, TD-SCDMA and GSM. It supports the regional coverage of 5G countries in the Asia Pacific (Including China, Japan, South Korea).

Fibocom AN958-AE specially designed for automotive front loading applications. In terms of hardware design, the 5G module can be tested in harsh environments and have superior anti-static and anti-electromagnetic interference capabilities. Improve solutions for automotive and other special environmental applications.

Fibocom AN958-AE developed in accordance with the IATF16949 system, followed the APQP process, and supported the PPAPsubmission standard. Comply with vehicle electrical and electronic equipment environmental conditions.

Fibocom AN958-AE module specifications:

* Chipset: Qualcomm SA515M

* Network bands:
- 5G Sub-6: n1/n3/n41/n77/n78/n79
- LTE FDD: B1/3/5/7/8/18/19/21/28
- LTE TDD: B34/38/39/40/41/42
- WCDMA: B1/2/4/5/8/19
- TD-SCDMA: Band 34/39
- GSM: 850/900/1800/1900GHz

* Factor: LGA

* Size: 48 x 48 x 2.7mm

* Operating Voltage: 3.3V~4.3V, Typical 3.8V

* Temperature Range: -40~+85°C

* AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands

* Antenna: 6 Antennas + 1GPS

* GNSS: GPS/GLONASS/GALILEO/BEIDOU

* Data rates:
- 5G: 5G NR Sub-6:4 x 4MIMO 256QAM 1CC (4 layers)
- LTE: 4*4MIMO Max Peak Rate 1.6Gbps
- 5G NR Sub-6: 2 x 2 MIMO 256QAM Max Peak Rate 600Mbps(NSA)/800Mbps（SA）
- 1 x 1MIMO 256QAM Max Peak Rate 200Mbps

* Other functions:
- SMS: MO/MT Text and PDU modes
- FOTA/DFOTA/CS/VoLTE/Audio/eSIM
- Open Linux
- A/B Dual Systems
- HTTP(S)/FTP(S)/TCP/UDP/PPP/DHCP/PING/TLS/SSL/SMTP/ ECM/NCM/RNDIS/Gobinet/RIL

* Interfaces:
- SIM Card: 1.8V/ 3.0V x 2
- USB x1
- I2S x1
- RGMII x2

* Approval: CCC*/ SRRC*/NAL*/RoHS*/JATE*/TELEC*/NCC*(* = Planning)
