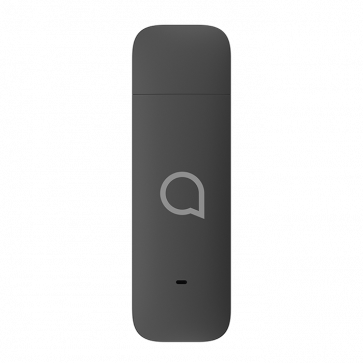

Alcatel IK41 4G LTE USB Dongle

Alcatel IK41 LTE USB Dongle is an IOT-specified product that provides you with a secure and reliable high-speed internet connection. It allows integration into several operating systems including Linux via a USB type A connector. Internal antennas are available but it also has two external antenna ports supporting MIMO. The IK41 can further be controlled via AT-commands to be customized for your application - A true IOT-workhorse if you want a faster and easier integration than an integrated module. It has many variant models as below:

Alcatel IK41UC(for North America) supports:
- 4G LTE Bands: B2(1900), B4(AWS), B7(2600), B12(700ac), B13(700c), B17(700bc), B5(850), B71(600)
- 3G UMTS Bands: B2 (1900), B4 (AWS), B5 (850)
- 2G GSM/EDGE Bands: B5 (850), B8 (900), B3 (1800), B2 (1900)

Alcatel IK41UD(for Latin America):
- 4G LTE Bands: B2(1900), B3 (1800), B4(AWS), B7(2600), B12(700ac), B12(700ac), B5(850), B28(700 APAC)
- 3G UMTS Bands: B2 (1900), B4 (AWS), B5 (850)
- 2G GSM/EDGE Bands: B5 (850), B8 (900), B3 (1800), B2 (1900)

Alcatel IK41CQ(for Asia Pacific):
- 4G LTE Bands: B1(2100), B3(1800), B19(800 upper), B5(850), B28(700 APAC)
- 3G UMTS Bands: B2 (1900), B8 (900), B3 (1800), B5 (850)
- 2G GSM/EDGE Bands: B5 (850), B8 (900), B3 (1800), B2 (1900)

Alcatel IK41US(for US Market):
- 4G LTE Bands: B2(1900), B4(AWS), B7(2600), B12(700ac), B13(700c), B5(850), B71(600)
- 3G UMTS Bands: B2 (1900), B4 (AWS), B5 (850)
- 2G GSM/EDGE Bands: B5 (850), B8 (900), B3 (1800), B2 (1900)

Alcatel IK41VE(for Europe):
- 4G LTE Bands: B1(2100), B3(1800), B7(2600), B8(900), B20(800DD), B28(700 APAC)
- 3G UMTS Bands: B1 (2100), B8 (900)
- 2G GSM/EDGE Bands: B5 (850), B8 (900), B3 (1800), B2 (1900)

Alcatel IK41 4G LTE Dongle Specifications:

* Manufacturer: Alcatel

* Technologies: LTE Cat-4/HSPA+/HSPA/HSUPA/HSDPA/GSM/GPRS

* Chipset: Qualcomm MDM9207

* MIMO: Yes

* FOTA Firmware updates: Yes

* For factor: USB Type A

* Antenna interface: CRC-9

* LTE maximum download speed to 150Mbps, upload speed to 50Mbps

* Operating Temperature range: -10 °C – 55 °C

* Driver support: Linux, Windows 10, Mac OS X10.9

* Interface: USB2.0

* SIM Interface: Micro(3FF) SIM-slot

* Certification: CE, RoHS, WEEE, REACH

* Other features:
- SIM lock can be customized
- USSD can be customized
- Support under adminstrator SMS
- Support Statistic
- Support IPV4 and IPV6 agreement

* Dimensions: 88 x 27.4 x 11.45mm

* Weight: 32g

* Colors available: White/Black
