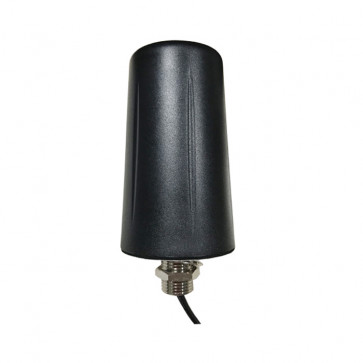

5G LTE M2M Omni-directional Wideband Permanent Mount Ultra Wide-Band Antenna

This is a wideband permanent mount antenna with low cost high performance screw mount. This antenna has superior performance over wide bands compared to traditional whip antennas. Stable radiation patterns over low angles provide consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications. Supplied with a convenient 3m length of RG58 cable it is easy to install and compatible with a large range of modems.

At only 82mm high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear. It is a waterproof, external 2G/3G/4G/5G cellular LTE antenna operating at 600-960/1710-3800MHz.

It has been designed to be used on a ground plane. Although intended for magnetic mounting on a conductive ground plane, the antenna can also be used for desk mounting applications with some impact on performance. It can be used in mobile and fixed applications for 4G/5G LTE wireless such as: Public safety, Utilities, smart cities, Fleet management, Precision agricultural, Industrial applications etc...

The Wideband Permanent Mount M2M 5G LTE Ultra Wide-Band Antenna Specifications:

* Electrical
-----------------------------------

• Frequency Range: 600-960/1710-3800MHz
• Gain 1: 3dBi / 698-960MHz
• Gain 2: 5dBi / 1710-2170MHz,
• Gain 3: 4dBi / 2400-2700MHz
• Gain 4: 3dBi / 2800-3800MHz
• V.S.W.R: ≤3.0:1
• Radiation: Omni-directional
• Polarization: Vertical
• Maximum Input Power: 50W
• Impedance: 50Ω
• Connector: SMA Male
• Cable Type: RG58U
• Cable Length: 3m
• Antenna Radome Material: ABS
• Mount way: Screw

* Mechanical
-----------------------------------

• Dimensions: Φ48×82mm
• Weight: 160g
• Operating Temperature: -40℃ to+70℃
• RoHS Compliant: Yes
