4G/LTE 3G 2G Signal Booster(GSM900 DCS1800)

Product Information:

This signal amplifier is to boost the signal coverage at place where there is weak network coverage, such as railway, underground parking garage, rural areas etc.

This set of signal amplifier includes one LPDA (log-periodic dipole array) Outdoor Antenna, One Omnidirectional indoor ceiling antenna, One Signal Booster and two prefessional extend cable.

The Signal Booster Technical Specifications:

* Model: GSM-DCS

* Working Frequency Bands:

- UL: 890-915MHz, 1710-1785MHz
- DL: 935-960MHz, 1825-1880MHz

* Working Power: AC110-240V(±10%, 45-55HZ)

* VSWR: ≤1.5

* Gain: UL≥65dBi, DL≥70dBi

* Noise factor: ≤5DB

* Stray radiation: ≤-36DBM

* Dimension-mm: 150 x 110 x 22 mm

* Weight: 1.1

Accessory Information:

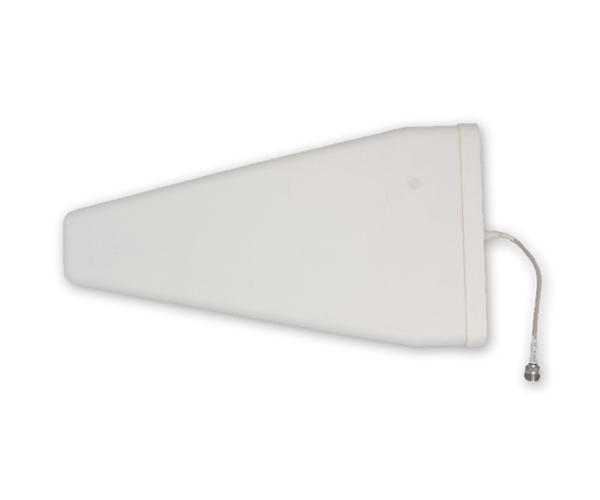

1. LPDA Outdoor Antenna Specifications:

* Frequency bands: 806-960MHz/1710-2500MHz

* Gain: 11db

* VSWR: ≤1.5

* Connector: N-K

* Input Impedance: 50Ω

* Polarization: Vertical

* Maximum Power: 100W

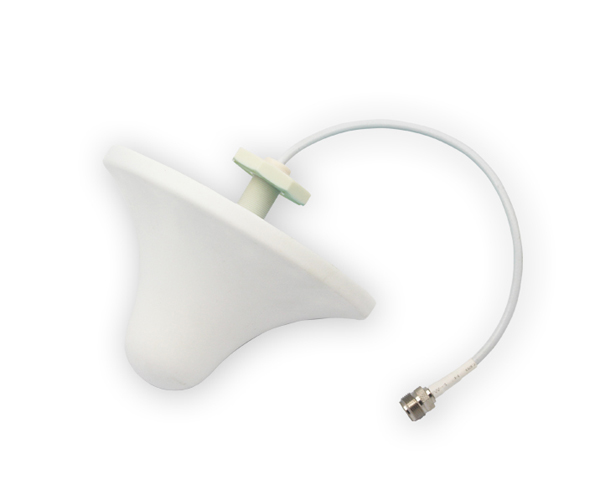

2.Indoor Ceiling Antenna:

* Frequency bands: 806-960MHz/1710-2500MHz

* Gain: 2-5DB

* VSWR: ≤1.5

* Input Impedance: 50Ω

* Polarization: Vertical

* Maximum Power: 100W

* Connector: NJ

Package Content:

* 1 x Signal Booster

* 1 x LPDA Outdoor Antenna

* 1 x Indoor Ceiling Antenna

* 2 x Extend cable(15 meters for outdoor, 5 meters for indoor)

* 1 x power adapter

* 1 x Installation Guide

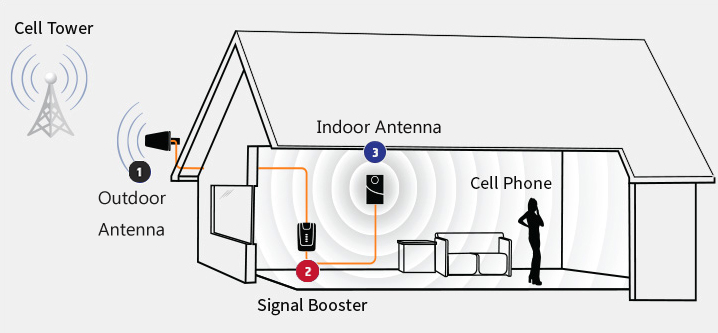

How does the signal booster work? See below image:
