ZOOM T3200-D22 Outdoor LTE CPE

* Support multi-mode networks and LTE Cat4


* Peak download speed up to 150Mbps


* WiFi 802.11b/g/n, 2 x 2 MIMO


* WiFi supporting up to 32 wireless terminals


* 5 x 100M LAN Ports


* Support Passive PoE

Sign up for price alert

Availability: In stock

$599.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products.

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

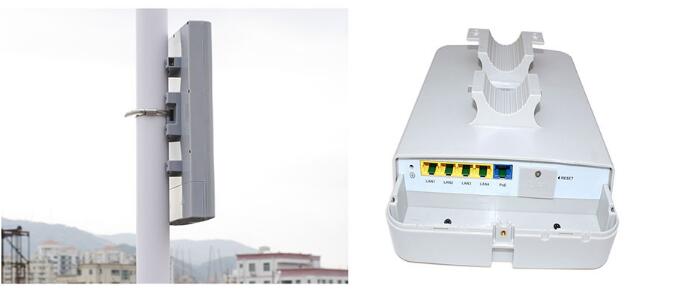

ZOOM T3200-D22 is a multi-mode directional outdoor LTE CPE supporting LTE-TDD/LTE-FDD/TD-SCDMA networks. The T3200-D22 LTE CPE support LTE category 4 and provide peak download speed up to 150Mbps, and the WiFi is 802.11b/g/n standard, 2 x 2 MIMO, supporting peak download speed to 300mbps. There are 5 LAN ports in the ZOOM T3200-D22 Outdoor CPE; other terminals could connect to the CPE via Ethernet cable or WiFi and enjoy high surfing speed through LTE networks. The ZOOM T3200-D22 could be used in many outdoor wireless scenarios.

ZOOM T3200-D22 Outdoor LTE CPE


ZOOM T3200-D22 CPE highlights:

* Support multi-mode LTE networks and LTE Cat4

* Peak download speed up to 150Mbps

* WiFi 802.11b/g/n, 2 x 2 MIMO

* WiFi supporting up to 32 wireless terminals

* 5 x 100M LAN Ports

* Support Passive PoE


ZOOM T3200-D22 LTE Outdoor CPE Hardware Specifications:

* Processor: MIPS24KEc, 580MHz

* Flash + DDR: 16MB SPI FLASH + 128MB DDR2

* Ethernet Ports: 5 LAN ports, 10/100 BASE-T, support MDI, MDIX

* WLAN: 802.11b/g/n, maximum speed up to 300mbps

* Indicators: 1 x power indicator, 1 x network status indicator, 4 x LTE signal strength indicators

* SIM card slot: one standard SIM/USIM slot, size at 25mm x 15 mm

* Button: One Reset button (long press to reset the CPE to factory default)

* Power: support passive PoE 15V, the max distance is 50meters

* Power Consumption: < 10W

* Dimensions: 258 x 180 x 80mm

* Weight: < 500g

* Operating temperature: –20°C to +60°C

* Storage temperature: –40°C to +80°C

* Humidity: 5% to 95%



ZOOM T3200-D22 LTE Outdoor CPE Technical Specifications:

* Network frequency bands:

- LTE-FDD: Band 1 and Band 3
- LTE-TDD: Band 38, 39, 40, 41
- TD-SCDMA: Band 34 and Band 39

* Transmit power

- LTE-FDD: Band 1(+22dBm),Band 3(+22dBm)
- LTE-TDD: Band 38(+23dBm), Band 39(+23dBm), Band 40(+23dBm), Band 41(+23dBm)
- TD-SCDMA: Band 34/39(+24dBm)

* Maximum Speed:

- LTE-FDD: DL 150Mbit/s, UL 50Mbit/s @20MHz BW
- LTE-TDD: DL 150Mbit/s, UL 50Mbit/s @20MHz BW
- TD-SCDMA: TD-SCDMA/HSDPA 2.8Mbit/s, TD-SCDMA/HSUPA 2.2Mbit/s

* 3GPP Release:

- LTE protocol: Rel.9
- TD-SCDMA protocol: Rel.9

* Antenna: built-in 8dBi high gain directional antenna




ZOOM T3200-D22 LTE CPE WLAN Specifications:

* WLAN protocol: 802.11b/g/m(2*2:2)

* Working frequency: 2.4000GHz~2.4835GHz

* Max Transimit Power: 802.11n(19dBm±2dBm (2x2)

* Receiver sensitivity: 802.11n(-64dBm)(65Mbit/s)

* Max speed: 300Mbps(HT40)/144.4Mbps(HT20)

* Max supported users: 32

* Antenna: built-in 5dBi omnidirectional antenna



Package Content:

* 1 x T3200-D22

* 1 x Power adapter

* 1 x Ethernet cable (2 meters)

* 1 x PoE cable(3 meters)

Remark:  If you need longer cables, please contact us before purchase.
