SIMCOM SIM900D

* Quad-Band 850/900/1800/1900 MHz


* Control via AT commands


* SIM application toolkit


* Low power consumption


* Support SMS and Voice

Sign up for price alert

Availability: In stock

$39.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

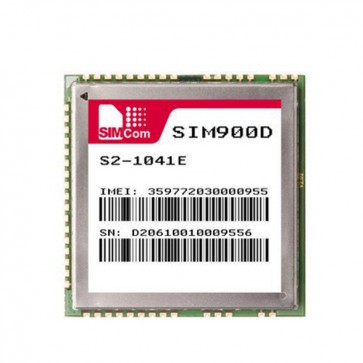

SIMCOM SIM900D is an ultra compact and reliable wireless module. The SIM900D is a complete qual-band GSM/GPRS solution in a SMT module which can be embedded in the customer applications allowing you to benefit from small dimensions and cost-effective solutions.Featuring an industry-standard interface, the SIM900D delivers GSM/GPRS 850/900/1800/1900 MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption.

SIMCOM SIM900A Technical Specifications:

* Quad-Band 850/900/1800/1900 MHz

* GPRS multi-slot class 10/8

* GPRS mobile station class B

* Compliant to GSM phase 2/2+
– Class 4 (2 W @850/ 900 MHz)
– Class 1 (1 W @ 1800/1900MHz)

* Dimensions: 33*33*3mm

* Weight: 6.2g

* Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)

* SIM application toolkit

* Supply voltage range : 3.1 ... 4.8V

* Low power consumption: 1.5mA(sleep mode)

* Operation temperature: -40 °C to +85°C

Specifications for Fax
* Group 3, class 1

Specifications for Data

* GPRS class 10: max. 85.6 kbps (downlink)

* PBCCH support

* Coding schemes CS 1, 2, 3, 4

* CSD up to 14.4 kbps

* USSD

* Non transparent mode

* PPP-stack


Specifications for SMS via GSM/GPRS

* Point-to-point MO and MT

* SMS cell broadcast

* Text and PDU mode


Software features

* 0710 MUX protocol

* embedded TCP/UDP protocol

* FTP/HTTP( available at July ,2010)

* FOTA ( available at July ,2010)

* MMS (available at July ,2010)

* Embedded AT (available at Q3,2010)


Specifications for Voice

* Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)

* Hands-free operation(Echo suppression)

* AMR
– Half rate (HR)
– Full rate (FR)

Interfaces

* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Embedded SIM (option )
* Antenna pad
* GPIO
* ADC
* Charge interface for Li battery
* PWM

Compatibility

* AT cellular command interface


Certificates:

* ROHS
* REACH
* CE
* GCF

Certificates(on going)

* FCC
* IC
