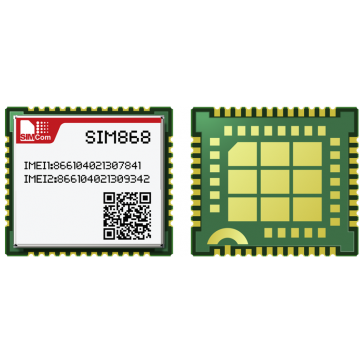

SIMCOM SIM868 GSM/GPRS + GNSS Module

* Quad-band 850/900/1800/1900MHz


* Control via AT commands


* Low power consumption


* GPRS class 12: max. 85.6 kbps

Sign up for price alert

Availability: In stock

$49.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

SIMCOM SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS technology for satellite navigation. The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.


SIMCOM SIM868 Technical Specifications:

* Quad-band 850/900/1800/1900MHz

* GPRS multi-slot class 12/10

* GPRS mobile station class B

* Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)

* Dimensions: 17.6*15.7*2.3mm

* Weight: 1.5g

* Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)

* Supply voltage range 3.4 ~ 4.4V

* Low power consumption

* Operation temperature:-40℃ ~85℃



Specifications for GPRS Data

* GPRS class 12: max. 85.6 kbps (downlink/uplink)

* PBCCH support

* Coding schemes CS 1, 2, 3, 4

* PPP-stack

* USSD




Specifications for SMS via GSM/GPRS

* Point to point MO and MT

* SMS cell broadcast

* Text and PDU mode



Software features

* 0710 MUX protocol

* Embedded TCP/UDP protocol

* FTP/HTTP

* MMS

* POP3/SMTP

* DTMF

* Jamming Detection

* Audio Record

* SSL



Specification for GPS

* Receiver type
-22 tracking /66 acquisition -channel
-GPS L1 C/A code

* Sensitivity
-Tracking: -166 dBm
-Cold starts: -148 dBm

* Time-To-First-Fix
-Cold starts: 29s (typ.)
-Hot starts: <1s
-Warm starts: 22s

* Accuracy
-Horizontal position : <2.5m CEP



Interfaces

* 77 SMT pins including

* SIM Card Interfaces
--SIM card: 3V/ 1.8V

* Analog audio interface

* RTC GNSS backup

* I2C interface

* USB interface

* Serial interface

* SD

* GPIO

* ADC

* GSM Antenna pad

* GNSS Antenna pad

* Bluetooth Antenna pad


Certifications

* CE

* FCC
