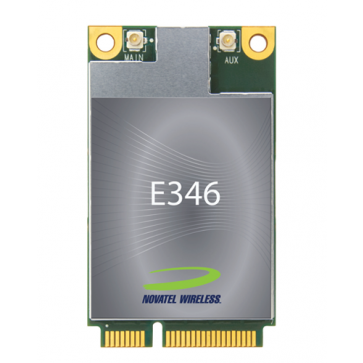

Novatel Expedite E346 3G PCI Express Mini Module

Novatel Wireless Expedite E346 PCI Express Mini Card is an embedded module that can be integrated into laptops and other devices for 3G mobile data applications. Powered by the Qualcomm MDM6200 chipset, the Expedite E346 offers high performance to the user on HSPA+ Five bands with global fallback to 2G.

Novatel Expedite E346 could provide download speed up to 14.4Mbps and the Expedite E346 3G PCI Express mini card covers HSPA+ networks with high efficiency and less power consumption.

Novatel E346 Technical Specifications:

Technology Bands:

- HSPA+/UMTS 850/900/AWS/1900/2100 MHz

- EGPRS 850/900/1800/1900 MHz

Data Speeds:

- 14.4 Mbps Download (HSPA+)

- 5.76 Mbps Upload (HSPA+)

Advanced Technologies

- Receiver Equalization - improves performance in noisy and highly mobile environments

- Receiver Diversity - improves performance at cell edges and in buildings

- GOBI QDL for carrier selection

Dimensions and Weight

- PCI Express Mini Card Form Factor - F2

- Single-sided design

- Size - 51 x 30 x 3.15 mm (H x W x D)

- Weight - 10 g

Host Interface

- PCI Express Mini Card

- Standard Interface

- USB

- LED control

- Antenna - 50 0hm compatible

Standards/Approvals/Certifications

- 3GPP (HSPA+)

- 3GPP Release 99 (GSM/GPRS)

- Support for GpsOne

- CCF57

- GCF

- FCC

- IC

- CE

- PTCRB

- Microsoft WHQL

- NDIS driver support

- RoHS compliant

- Halogen Free

- AT&T, Verizon, Sprint, Telefonica, Vodafone, Orange, TIM, T-Mobile (EMEA)
