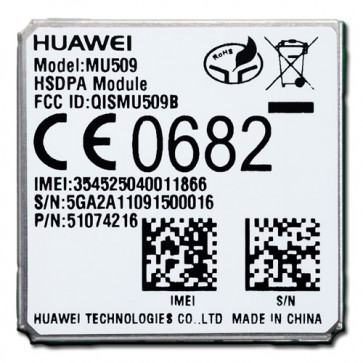

HUAWEI MU509 HSDPA M2M LGA Module

* Dual-band UMTS/HSDPA (WCDMA/FDD)


- MU509-b: 900/2100MHz


- MU509-c: 850/1900MHz


- MU509-g: 850/2100MHz


* Quad-band GSM GPRS: 850/900/1800/1900MHz


* EDGE Multi-slot class 12

Sign up for price alert

Availability: In stock

$99.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

HUAWEI MU509 is a dual-band UMTS/HSDPA wireless module supporting downlink data rates up to 3.6Mbps and uplink data rates up to 384kbps. There are three versions of MU509 which meet different market requirements:


HUAWEI MU509-b: Supporting for UMTS/HSDPA 900/2100MHz

HUAWEI MU509-c: Supporting for UMTS/HSDPA 850/1900MHz

HUAWEI MU509-g: Supporting for UMTS/HSDPA 850/2100MHz


The HUAWEI MU509 is one of the MX509 module family, pin-to-pin compatible with MC509 and MT509. It also supports global certification. With its ultra-compact design and extended operating temperature range, HUAWEI MU509 is the perfect platform for M2M applications.


HUAWEI MU509 Specifications:


Products Features:


* Dual-band UMTS/HSDPA (WCDMA/FDD)

- MU509-b: 900/2100MHz

- MU509-c: 850/1900MHz

- MU509-g: 850/2100MHz

* Quad-band GSM GPRS: 850/900/1800/1900MHz

* EDGE Multi-slot class 12


* Data Fatures:


- GSM CS: UL (9.6kbps)/DL (9.6kbps)

- GSM/EDGE: Multi-slot class 12, class 8

- WCDMA CS: UL (64kbps)/DL (64kbps)

- WCDMA PS: UL (384kbps)/DL (384kbps)

- HSDPA: DL (3.6Mbps)


* Output Power:

- WCDMA/HSDPA 900/2100MHz: +24 dBm (Power Class 3)

- EGSM850 Class 4 (2W)

- EGSM900 Class 4 (2W)

- GSM1800 Class 1 (1W)

- GSM1900 Class 1 (1W)


* Sensitivity

- GSM 850/900/1800MHz: -109 dBm

- GSM 1900MHz: -107 dBm

- WCDMA 850/900 MHz: -110 dBm

- WCDMA 1900 MHz: -108 dBm

- WCDMA 2100 MHz: -109 dBm


* Control via AT commands:

- 3GPP TS 27.007 and 27.005

- HUAWEI Extended AT Command

* Embedded TCP/IP Stack, including UDP protocol

* Power supply: 3.3 V to 4.2 V (Typical: 3.8 V)

* Temperature range: Normal Operatation: -20 degree to 70 degree

* Humidity: 5% - 95%

* Dimensions: 30 mm x 30 mm x 2.65 mm

* Weight: 7g



Interfaces:


- Antenna interface

- 145-pin LGA connector

- power supply

- Analog Audio

- UART

- SIM 1.8 V/ 3.0V

- Reset

- Multiple GPIOs



Approvals & Certifications:


- CE

- PICRB(MU509-C)

- GCF (MU509-B)

- ROHS Compliant

- FCC

- CCC


Supplementary Service


- Caller ID Display

- Call forwarding/hold/waiting

- USSD
