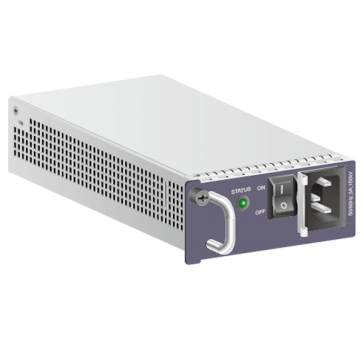

Huawei LS5M100PWA00 Power Module for Huawei S5700 Series Switch

* Rated Input voltage range: 100V AC to 240V AC, 50/60Hz


* Maximum input voltage range: 90V AC to 264V AC; 47Hz to 63Hz


* Input current: 3A


* Maximum output current: 12.5A


* Rated output voltage: 12V

Sign up for price alert

Availability: In stock

$349.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Huawei LS5M100PWA00 is a power module for Huawei S5700 Series Switch.


Huawei LS5M100PWA00 Switch power technical specifications:

* Rated Input voltage range: 100V AC to 240V AC, 50/60Hz

* Maximum input voltage range: 90V AC to 264V AC; 47Hz to 63Hz

* Input current: 3A

* Maximum output current: 12.5A

* Rated output voltage: 12V

* Maximum output power: 150W

* Dimensions: 100mm x 205mm x 40mm

* Weight: 0.8kg


Huawei LS5M100PWA00 Function:

* Input protection: Input undervoltage and overvoltage protection is provided.

* Output protection: Output undervoltage, overvoltage, overcurrent, and short-circuit protection is provided

* Overtemperature: When the temperature of the power module exceeds a specified threshold(70℃), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
