Huawei AR511GW-LAV2M3 AR510 Series Agile Gateway

* Fixed interfaces: 2 x GE, 1 USB HOST, 1 USB OTG


* Two video interfaces (HDMI, CVBS, or YPbPr)


* Two stereo outputs (one output with audio power amplifier), one stereo input


* WLAN: FDD LTE, compatible with 3G


* Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11a/b/g/n


* GPS, IP40 or IP54(Mount bracket), Waterproof and dustproof

Sign up for price alert

Availability: In stock

$969.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

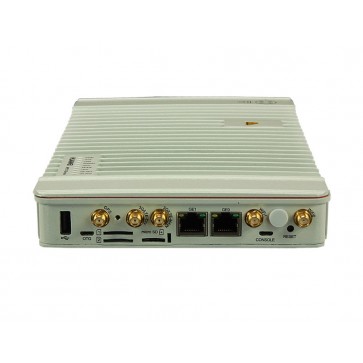

Huawei AR511GW-LAV2M3 is a wireless gateway tailored for mobile internet applications. It can be installed on vehicles(bus, train, police car and ambulance), bus stops, advertising boards, restaurants, and exhibition displays. Huawei AR511GW-LAV2M3 integrates routing gateway and multimedia functions, provide network access, video programs, and ad broadcasting functions. It provides mobile information services for consumers and create an intelligent routing system.


Huawei AR511GW-LAV2M3 is small and easy to install. It can directly receive power from the vehicle-mounted power supply. Huawei AR511GW-LAV2M3 complies with industry standards and is dustproof, waterproof, shockproof, and high-temperature resistant. It can run stably and reliably even in harsh environments. Dedicated for vehicle wireless access and vehicle-mounted video transmission, Huawei AR511GW-LAV2M3 supports 2.4GHz and 5GHz and connects many users for simultaneous access. It uses a 4G FDD LTE network for the data network but is compatible with a 3G network. With the wireless network, it provides long-distance data transmission and GPS. And it supports firewall technology and multiple VPN technologies to establish reliable, secure links, and ensure data security.


Huawei AR511GW-LAV2M3 Gateway features and specifications:


Highlights:

* Fixed interfaces: 2 x GE, 1 USB HOST, 1 USB OTG

* Two video interfaces (HDMI, CVBS, or YPbPr)

* Two stereo outputs (one output with audio power amplifier), one stereo input

* WLAN: FDD LTE(Band 1/2/3/5/7/8/20), compatible with 3G

* Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11a/b/g/n

* GPS

* IP40 or IP54(Mount bracket), Waterproof and dustproof


Huawei AR511GW-LAV2M3 Technical Specifications:

* Fixed Ethernet interface: 2 x GE

* Video interface: Two video interfaces (HDMI, CVBS, or YPbPr), which support playing 1080p HD video

* Video Codec: MPEG4, H.264, H.263, Divx, Xvid, RV10

* Video file: format MP4, RM, DivX, 3GP, MOV, MKV

* Audio interface: Two stereo outputs (one output: audio power amplifier), one stereo input

* Audio Codec: MP3, AAC, AAC+, eAAC+, WMA, OGG, AC-3

* Audio file: format MP3, WAV, WMA, OGG, AMR, AAC

* Hard disk interface: n/a

* 3G/LTE: FDD LTE, compatible with 3G(WCDMA/HSDPA/HSUPA/HSPA+), Dual SIM cards(one standby)

* Wi-Fi: Dual-band AP (2.4 GHz and 5 GHz), 2x2 MIMO, 802.11a/b/g/n

* GPS: Supported

* Console interface: 1

* USB2.0: 1 x USB HOST, 1 x USB OTG

* Memory: 2 GB

* Storage: Built-in Flash 4 GB

* Power supply: Dual DC inputs: 8V to 36V

* Maximum Power: 30W

* Dimensions(W x D x H): 275 mm x 160 mm x 30 mm

* Weight: 1.3Kg

* Operating temperature: -10℃ to +60℃

* Storage temperature: -40℃ to +85℃

* Operating humidity 5% RH to 95% RH (non-condensing)

* Installation method: Wall-mounted or horizontally

* Shock and vibration standards: QC/T 413-2002, ISO 16750-3:2007

Huawei AR511GW-LAV2M3 Software Specifications:

* Basic features: DHCP server/client/relay, DNS client/proxy/relay, NAT, ARP, Port management

* WLAN WLAN QoS, WLAN Security, WLAN radio management, WLAN VAP management, WLAN user management, WLAN anti-attack

* IPv4 unicast routing: Unicast routing management, routing policies, static routes, RIP, OSPF, IS-IS, BGP, MBGP

* Multicast: IGMPv1/v2/v3, PIM SM, PIM DM, PIM-SSM, MSDP

* VPN: L2TP VPN, GRE VPN, Efficient VPN

* QoS: ACL, QoS, MQC, SAC

* Security: Firewall, AAA authentication, RADIUS authentication, HWTACACS authentication, ICMP attack defense, Unicast Reverse Path Forwarding (URPF), CPCAR, blacklist, Public Key Infrastructure (PKI)

* Management and maintenance: Web Management, System management, Upgrade management, Device management, SNMPv1/v2c/v3, USB-based deployment
